  1. Home
  2. /Bearings
  3. /SKF 7204 Angular Contact Ball Bearing
SKF

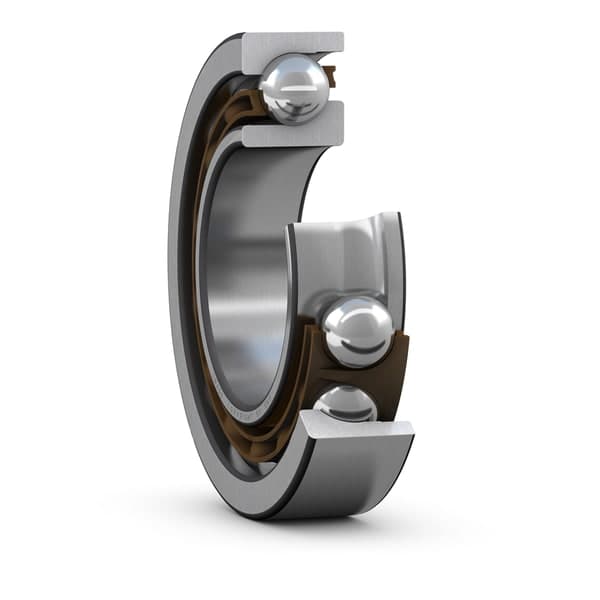

SKF 7204 SKF 7204 Angular Contact Ball Bearing
  • SKF 7204 SKF 7204 Angular Contact Ball Bearing

SKF

SKF 7204 Angular Contact Ball Bearing 20 × 47 × 14 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TL3SHNQREJ
Category
Angular Contact Ball Bearing
Bore
20 mm
Outer Ø
47 mm
Width
14 mm

Overview

The SKF 7204 is a plain angular contact ball bearing with no suffix, 20 × 47 × 14 mm (bore × OD × width).

Kovar lists 21 SKF variants in the 20×47×14 mm size; the closest to the 7204 are 7204ACCBM, 7204ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7204ACDGB/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, light preload, Tolerance class P4A). Limiting speed is 18,000 rpm for the 7204 versus 30,000 rpm for the 7204ACCBM.

The same specification comes one size down as 7203 (17 mm bore) and one size up as 7205 (25 mm bore). Parts from other brands with the same dimensions as the 7204 include FAG 7204-B-XL-JP, IBC 7204.BE, KOYO 7204, NSK 7204; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m0.103 kgWeight
nϑr19000Reference speed
nG18000Limiting speed
α40 °Contact Angle (α)
C13.3 kNBasic Dynamic Load Rating (C)
C07.65 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d20Bore diameter
D47Outside diameter
B14Width

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

RFQ

Same size as SKF 7204, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 7204-B-XL-2RS-TVP Angular Contact Ball Bearing

    FAG

    7204-B-XL-2RS-TVP

    Angular Contact Ball Bearing

    US$32.70

    Excl. VAT

    ●

    In stock (42)

  • IBC
    IBC IBC 7204.BE Angular Contact Ball Bearing

    IBC

    7204.BE

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 7204 Angular Contact Ball Bearing

    KOYO

    7204

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 7204 Angular Contact Ball Bearing

    NSK

    7204

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 7204 Angular Contact Ball Bearing

    NTN

    7204

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 7204ACCBM Angular Contact Ball Bearing

    SKF

    7204ACCBM

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 7204-B-XL-JP Angular Contact Ball Bearing

    FAG

    7204-B-XL-JP

    Angular Contact Ball Bearing

    US$8.43

    Excl. VAT

    ●

    In stock (6)

  • IBC
    IBC IBC 7204.C Angular Contact Ball Bearing

    IBC

    7204.C

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
