  1. Home
  2. /Bearings
  3. /SKF 7207 Angular Contact Ball Bearing
SKF

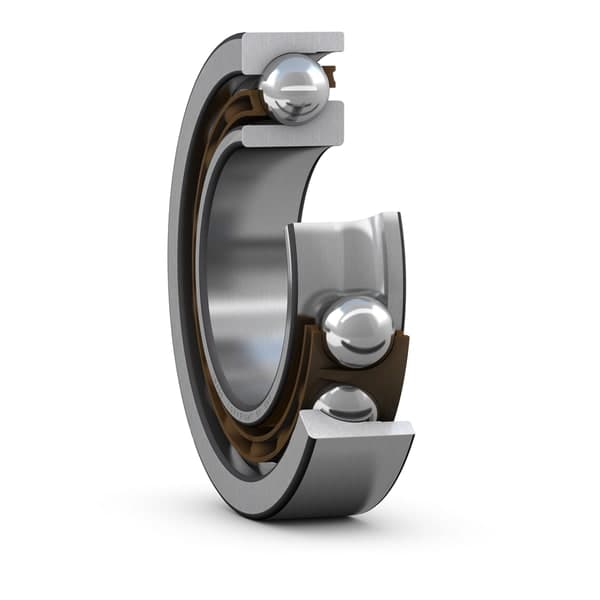

SKF 7207 SKF 7207 Angular Contact Ball Bearing
  • SKF 7207 SKF 7207 Angular Contact Ball Bearing

SKF

SKF 7207 Angular Contact Ball Bearing 35 × 72 × 17 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLJNZMPH9M
Category
Angular Contact Ball Bearing
Bore
35 mm
Outer Ø
72 mm
Width
17 mm

Overview

SKF 7207: a plain angular contact ball bearing with no suffix measuring 35 × 72 × 17 mm (bore × OD × width).

Kovar lists 14 SKF variants in the 35×72×17 mm size; the closest to the 7207 are 7207ACCBM, 7207ACDGA/HCP4A (25° contact angle, high-capacity D design, Single bearing for universal matching, extra light preload, Ceramic balls, Tolerance class P4A), 7207ACDGB/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, light preload, Tolerance class P4A). Limiting speed is 11,000 rpm for the 7207 versus 19,000 rpm for the 7207ACCBM.

The same specification comes one size down as 7206 (30 mm bore) and one size up as 7208 (40 mm bore). Looking for the 7207 size from another brand? Options include FAG 7207 -B-MP, IBC 7207.BE, KOYO 7207, NSK 7207 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
≈m0.272 kgWeight
nϑr12000Reference speed
nG11000Limiting speed
α40 °Contact Angle (α)
C29.1 kNBasic Dynamic Load Rating (C)
C019 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d35Bore diameter
D72Outside diameter
B17Width

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
