SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

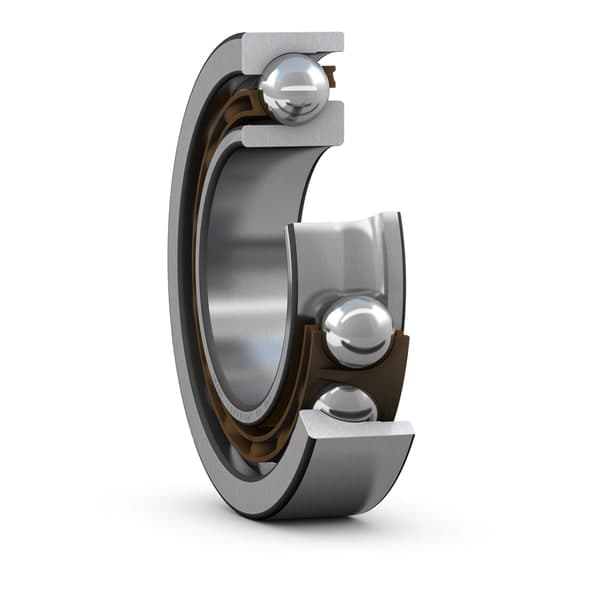

The SKF 7213 is a plain angular contact ball bearing with no suffix, 65 × 120 × 23 mm (bore × OD × width).
Kovar lists 18 SKF variants in the 65×120×23 mm size; the closest to the 7213 are 7213ACCBM, 7213ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7213ACDGA/HCP4A (25° contact angle, high-capacity D design, Single bearing for universal matching, extra light preload, Ceramic balls, Tolerance class P4A). Limiting speed is 6,300 rpm for the 7213 versus 11,000 rpm for the 7213ACCBM.
The same specification comes one size down as 7212 (60 mm bore) and one size up as 7214 (70 mm bore). Parts from other brands with the same dimensions as the 7213 include FAG 7213 -B-MP, IBC 7213.BE, KOYO 7213, NACHI 7213CP5; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 0.977 kg | Weight |
| nϑr | 6700 | Reference speed |
| nG | 6300 | Limiting speed |
| α | 40 ° | Contact Angle (α) |
| C | 66.3 kN | Basic Dynamic Load Rating (C) |
| C0 | 54 kN | Basic Static Load Rating (C0) |
| Symbol | Value | Description |
|---|---|---|
| d | 65 | Bore diameter |
| D | 120 | Outside diameter |
| B | 23 | Width |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
RFQ
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
