  1. Home
  2. /Bearings
  3. /SKF 7214 Angular Contact Ball Bearing
SKF

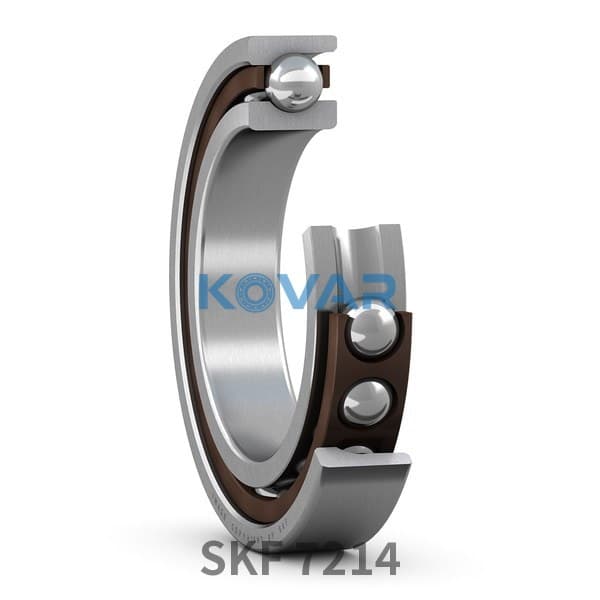

SKF 7214 SKF 7214 Angular Contact Ball Bearing
  • SKF 7214 SKF 7214 Angular Contact Ball Bearing

SKF

SKF 7214 Angular Contact Ball Bearing 70 × 125 × 24 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLCGYYSEQM
Category
Angular Contact Ball Bearing
Bore
70 mm
Outer Ø
125 mm
Width
24 mm

Overview

SKF 7214: a plain angular contact ball bearing with no suffix measuring 70 × 125 × 24 mm (bore × OD × width).

Kovar lists 14 SKF variants in the 70×125×24 mm size; the closest to the 7214 are 7214ACCBM, 7214ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7214ACDGB/HCP4A (25° contact angle, high-capacity D design, Single bearing for universal matching, light preload, Ceramic balls, Tolerance class P4A). Limiting speed is 6,000 rpm for the 7214 versus 10,000 rpm for the 7214ACCBM.

The same specification comes one size down as 7213 (65 mm bore) and one size up as 7215 (75 mm bore). Looking for the 7214 size from another brand? Options include FAG 7214 -B-MP, IBC 7214.BE, KOYO 7214, NACHI 7214CP5 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
≈m1.06Weight
nϑr6300Reference speed
nG6000Limiting speed
α40 °Contact Angle (α)
C67.6 kNBasic Dynamic Load Rating (C)
C056 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d70Bore diameter
D125Outside diameter
B24Width

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
