SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

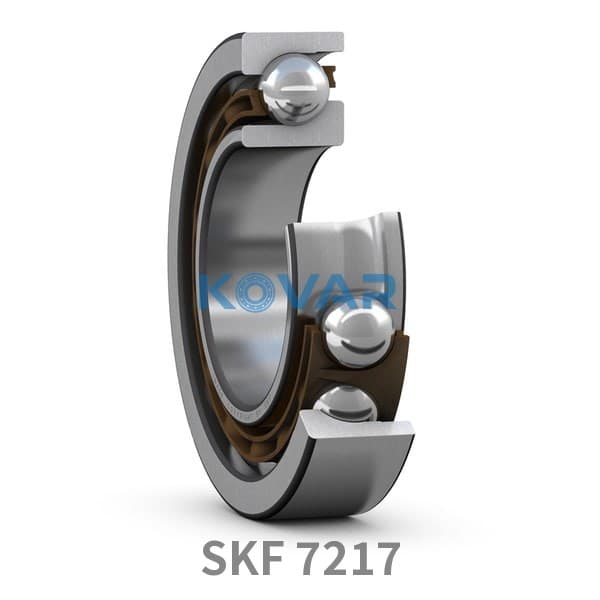

The SKF 7217 is a plain angular contact ball bearing with no suffix, 85 × 150 × 28 mm (bore × OD × width).
Kovar lists 13 SKF variants in the 85×150×28 mm size; the closest to the 7217 are 7217ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7217ACDGB/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, light preload, Tolerance class P4A), 7217ACDGC/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, moderate preload, Tolerance class P4A). The 7217 weighs 1.79 kg, compared with 1.82 kg for the 7217ACD/P4A.
The same specification comes one size down as 7216 (80 mm bore) and one size up as 7218 (90 mm bore). Parts from other brands with the same dimensions as the 7217 include FAG 7217 -B-MP, IBC 7217.BE, KOYO 7217, NSK 7217; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 1.79 | Weight |
| nϑr | 5300 | Reference speed |
| nG | 5000 | Limiting speed |
| α | 40 ° | Contact Angle (α) |
| C | 95.6 kN | Basic Dynamic Load Rating (C) |
| C0 | 83 kN | Basic Static Load Rating (C0) |
| Symbol | Value | Description |
|---|---|---|
| d | 85 | Bore diameter |
| D | 150 | Outside diameter |
| B | 28 | Width |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
RFQ
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

FAG
7217-B-MP
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

IBC
7217.BE
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

KOYO
7217
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NSK
7217
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

NTN
7217
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

SKF
7217ACDGB/P4A
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

FAG
7217-B-MP-UA
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.

IBC
7217.C
Angular Contact Ball Bearing
This product is quote-only — please send an inquiry for pricing and availability.
Nearby part numbers from the same brand, same product type first — compare seal, clearance and size variants.
