SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

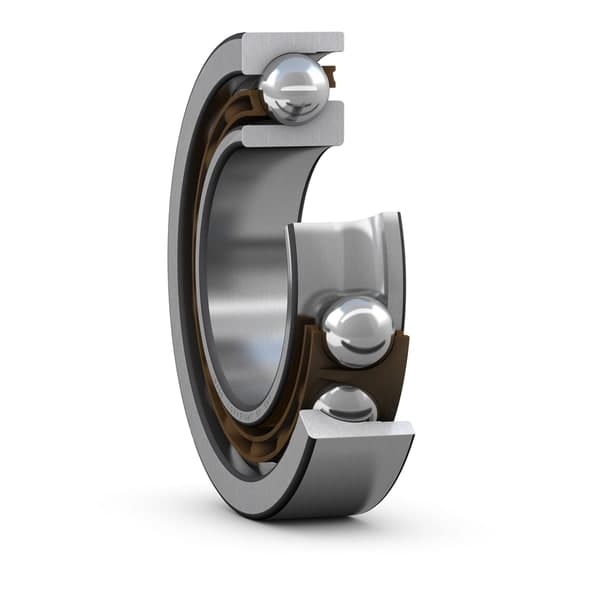

SKF 7218: a plain angular contact ball bearing with no suffix measuring 90 × 160 × 30 mm (bore × OD × width).
Kovar lists 15 SKF variants in the 90×160×30 mm size; the closest to the 7218 are 7218ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7218ACDGA/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, extra light preload, Tolerance class P4A), 7218ACDGB/HCP4A (25° contact angle, high-capacity D design, Single bearing for universal matching, light preload, Ceramic balls, Tolerance class P4A). The 7218 weighs 2.22 kg, compared with 1.8 kg for the 7218ACDGB/HCP4A.
The same specification comes one size down as 7217 (85 mm bore) and one size up as 7219 (95 mm bore). Looking for the 7218 size from another brand? Options include FAG 7218 -B-MP, IBC 7218.BE, KOYO 7218, NSK 7218 (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| C | 108 kN | Basic dynamic load rating |
| C0 | 96.5 kN | Basic static load rating |
| nϑr | 5 000 r/min | Reference speed |
| nG | 4 500 r/min | Limiting speed |
| ≈m | 2.22 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 90 mm | Bore diameter |
| D | 160 mm | Outside diameter |
| B | 30 mm | Width |
| α | 40 ° | Contact angle |
| Symbol | Value | Description |
|---|---|---|
| da | min. 101 mm | da |
| Da | max. 149 mm | Da |
| Db | max. 154 mm | Db |
| ra | max. 2 mm | ra |
| rb | max. 1 mm | rb |
| Code | Description |
|---|---|
| Contact type | Normal contact (four-point contact) |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer ring |
| Cage | Non-metallic |
| Matched arrangement | No |
| Universally matchable bearing | No |
| Axial internal clearance | Not applicable |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | None |
| Sealing | None |
| Lubricant | None |
| Relubrication feature | None |
| Net weight | 2.22 kg |
| eClass code | 23-05-08-03 |
| UNSPSC code | 31171531 |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
RFQ
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
