SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

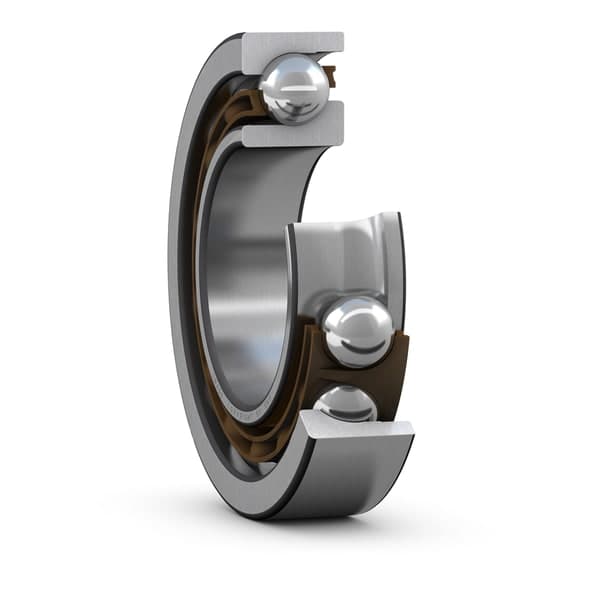

The SKF 7219 is a plain angular contact ball bearing with no suffix, 95 × 170 × 32 mm (bore × OD × width).
Kovar lists 11 SKF variants in the 95×170×32 mm size; the closest to the 7219 are 7219ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7219ACDGB/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, light preload, Tolerance class P4A), 7219BECBM (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance). Limiting speed is 4,300 rpm for the 7219 versus 6,300 rpm for the 7219BECBM.
The same specification comes one size down as 7218 (90 mm bore) and one size up as 7220 (100 mm bore). Parts from other brands with the same dimensions as the 7219 include FAG 7219 -B-MP, IBC 7219.BE, KOYO 7219, NSK 7219; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| ≈m | 2.68 | Weight |
| nϑr | 4500 | Reference speed |
| nG | 4300 | Limiting speed |
| α | 40 ° | Contact Angle (α) |
| C | 124 kN | Basic Dynamic Load Rating (C) |
| C0 | 108 kN | Basic Static Load Rating (C0) |
| Symbol | Value | Description |
|---|---|---|
| d | 95 | Bore diameter |
| D | 170 | Outside diameter |
| B | 32 | Width |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
