SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

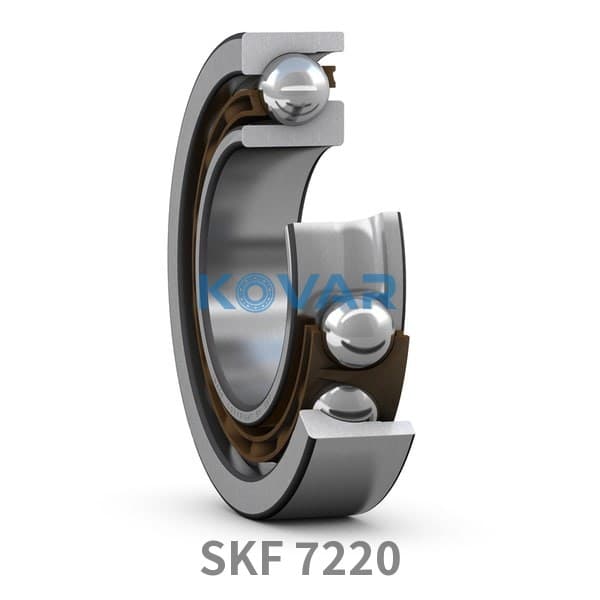

The SKF 7220 is a plain angular contact ball bearing with no suffix, 100 × 180 × 34 mm (bore × OD × width).
Kovar lists 13 SKF variants in the 100×180×34 mm size; the closest to the 7220 are 7220ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7220ACDGB/HCP4A (25° contact angle, high-capacity D design, Single bearing for universal matching, light preload, Ceramic balls, Tolerance class P4A), 7220ACDGB/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, light preload, Tolerance class P4A). The 7220 weighs 3.21 kg, compared with 3.19 kg for the 7220ACD/P4A.
The same specification comes one size down as 7219 (95 mm bore) and one size up as 7221 (105 mm bore). Parts from other brands with the same dimensions as the 7220 include FAG 7220 -B-MP, IBC 7220.BE, KOYO 7220, NSK 7220; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| C | 135 kN | Basic dynamic load rating |
| C0 | 122 kN | Basic static load rating |
| nϑr | 4 500 r/min | Reference speed |
| nG | 4 000 r/min | Limiting speed |
| ≈m | 3.21 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 100 mm | Bore diameter |
| D | 180 mm | Outside diameter |
| B | 34 mm | Width |
| α | 40 ° | Contact angle |
| Symbol | Value | Description |
|---|---|---|
| da | min. 112 mm | da |
| Da | max. 168 mm | Da |
| Db | max. 173 mm | Db |
| ra | max. 2 mm | ra |
| rb | max. 1 mm | rb |
| Code | Description |
|---|---|
| Contact type | Normal contact (four-point contact) |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer ring |
| Cage | Non-metallic |
| Matched arrangement | No |
| Universally matchable bearing | No |
| Axial internal clearance | Not applicable |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | None |
| Sealing | None |
| Lubricant | None |
| Relubrication feature | None |
| Net weight | 3.21 kg |
| eClass code | 23-05-08-03 |
| UNSPSC code | 31171531 |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
