SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

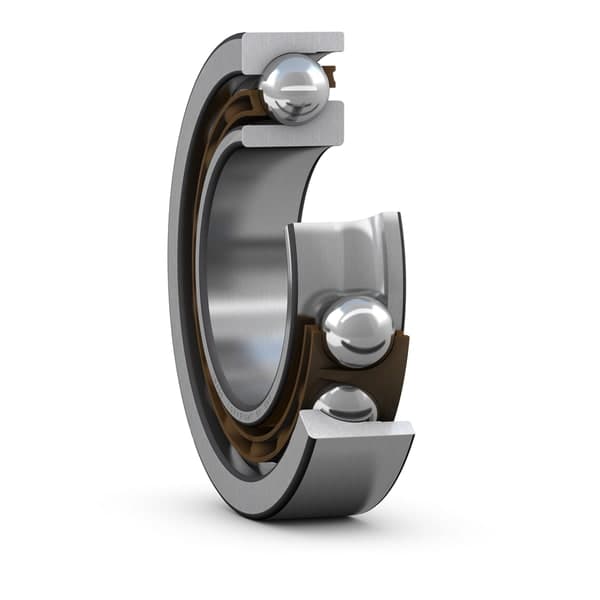

SKF 7221: a plain angular contact ball bearing with no suffix measuring 105 × 190 × 36 mm (bore × OD × width).
Kovar lists 10 SKF variants in the 105×190×36 mm size; the closest to the 7221 are 7221ACD/P4A (25° contact angle, high-capacity D design, Tolerance class P4A), 7221ACDGA/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, extra light preload, Tolerance class P4A), 7221ACDGB/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, light preload, Tolerance class P4A). The 7221 weighs 3.82 kg, compared with 3.76 kg for the 7221ACD/P4A.
The same specification comes one size down as 7220 (100 mm bore) and one size up as 7222 (110 mm bore). Looking for the 7221 size from another brand? Options include FAG 7221M, IBC 7221.BE, KOYO 7221, NSK 7221 (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| C | 148 kN | Basic dynamic load rating |
| C0 | 137 kN | Basic static load rating |
| nϑr | 4 300 r/min | Reference speed |
| nG | 3 800 r/min | Limiting speed |
| ≈m | 3.82 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 105 mm | Bore diameter |
| D | 190 mm | Outside diameter |
| B | 36 mm | Width |
| α | 40 ° | Contact angle |
| Symbol | Value | Description |
|---|---|---|
| da | min. 117 mm | da |
| Da | max. 178 mm | Da |
| Db | max. 183 mm | Db |
| ra | max. 2 mm | ra |
| rb | max. 1 mm | rb |
| Code | Description |
|---|---|
| Contact type | Normal contact (four-point contact) |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Ring type | One-piece inner and outer ring |
| Cage | Non-metallic |
| Matched arrangement | No |
| Universally matchable bearing | No |
| Axial internal clearance | Not applicable |
| Tolerance class | Normal |
| Material, bearing | Bearing steel |
| Coating | None |
| Sealing | None |
| Lubricant | None |
| Relubrication feature | None |
| Net weight | 3.82 kg |
| eClass code | 23-05-08-03 |
| UNSPSC code | 31171531 |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
RFQ
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
