SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

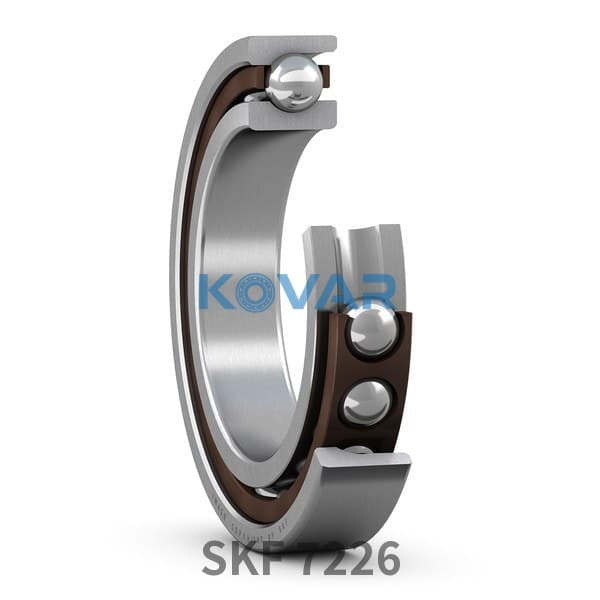

The SKF 7226 is a plain angular contact ball bearing with no suffix, 130 × 230 × 40 mm (bore × OD × width).
Kovar lists 6 SKF variants in the 130×230×40 mm size; the closest to the 7226 are 7226ACDGA/P4A (25° contact angle, high-capacity D design, Single bearing for universal matching, extra light preload, Tolerance class P4A), 7226BCBM (40° contact angle, Universally matchable, Normal axial internal clearance), 7226BGAM (40° contact angle, Single bearing for universal matching, light preload). The 7226 weighs 6.34 kg, compared with 6.76 kg for the 7226BCBM.
The same specification comes one size down as 7224 (120 mm bore) and one size up as 7228 (140 mm bore). Parts from other brands with the same dimensions as the 7226 include FAG 7226 -B-MP, IBC 7226.BE, KOYO 7226, NSK 7226; check that the seal and clearance suffixes match before substituting.
| Symbol | Value | Description |
|---|---|---|
| C | 203 kN | Basic dynamic load rating |
| C0 | 212 kN | Basic static load rating |
| 5 600 r/min | Attainable grease lubrication speed | |
| 8 500 r/min | Attainable oil-air lubrication speed | |
| ≈m | 6.34 kg | Weight |
| Symbol | Value | Description |
|---|---|---|
| d | 130 mm | Bore diameter |
| D | 230 mm | Outside diameter |
| B | 40 mm | Width |
| α | 25 ° | Contact angle |
| Symbol | Value | Description |
|---|---|---|
| da | min. 144 mm | da |
| db | min. 144 mm | db |
| Da | max. 216 mm | Da |
| Db | max. 223 mm | Db |
| ra | max. 2.5 mm | ra |
| rb | max. 1 mm | rb |
| dn | 170.7 mm | dn |
| Code | Description |
|---|---|
| Contact type | Normal contact (four-point contact) |
| Number of rows | 1 |
| Ring type | One-piece inner and outer ring |
| Design | High capacity D |
| Universally matchable bearing | No |
| Matched arrangement | No |
| Matched condition (axial clearance / preload) | Not applicable |
| Tolerance class | P4A |
| Material, bearing | Bearing steel |
| Coating | None |
| Sealing | None |
| Lubricant | None |
| Net weight | 6.34 kg |
| eClass code | 23-05-08-04 |
| UNSPSC code | 31171531 |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
