  1. Home
  2. /Bearings
  3. /SKF 7301 Angular Contact Ball Bearing
SKF
SKF 7301 SKF 7301 Angular Contact Ball Bearing
  • SKF 7301 SKF 7301 Angular Contact Ball Bearing

SKF

SKF 7301 Angular Contact Ball Bearing 12 × 37 × 12 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLJBV2TQNR
Category
Angular Contact Ball Bearing
Bore
12 mm

Overview

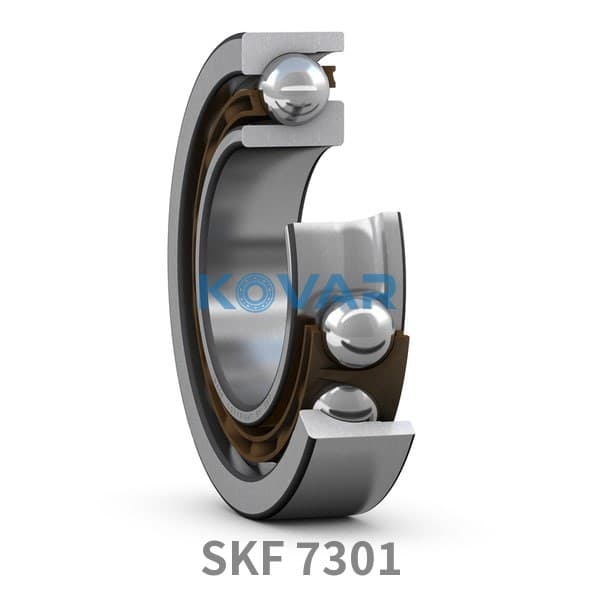

The SKF 7301 is a plain angular contact ball bearing with no suffix, 12 × 37 × 12 mm (bore × OD × width).

Kovar lists 3 SKF variants in the 12×37×12 mm size; the closest to the 7301 are 7301BE-2RZP (40° contact angle, optimized internal design, Non-contact seals on both sides, Glass fibre reinforced PA66 cage), 7301BEP (40° contact angle, optimized internal design, Glass fibre reinforced PA66 cage). Limiting speed is 24,000 rpm for the 7301 versus 20,000 rpm for the 7301BE-2RZP.

The same specification also comes in an adjacent size: 7302 (15 mm bore). Parts from other brands with the same dimensions as the 7301 include FAG 7301-B-XL-JP, IBC 7301.BE, KOYO 7301, NSK 7301; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
C10.6 kNBasic dynamic load rating
C05 kNBasic static load rating
nϑr26 000 r/minReference speed
nG24 000 r/minLimiting speed
≈m0.059 kgWeight

Dimensions

SymbolValueDescription
d12 mmBore diameter
D37 mmOutside diameter
B12 mmWidth
α40 °Contact angle

Mounting Dimensions

SymbolValueDescription
damin. 17.6 mmda
Damax. 31.4 mmDa
Dbmax. 32.8 mmDb
ramax. 1 mmra
rbmax. 0.6 mmrb

Related Parts

CodeDescription
Contact typeNormal contact (four-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer ring
CageNon-metallic
Matched arrangementNo
Universally matchable bearingNo
Axial internal clearanceNot applicable
Tolerance classNormal
Material, bearingBearing steel
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight0.059 kg
eClass code23-05-08-03
UNSPSC code31171531

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

Datasheet

📄datasheet pdf download

RFQ

Same size as SKF 7301, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
