  1. Home
  2. /Bearings
  3. /SKF 7308 Angular Contact Ball Bearing
SKF

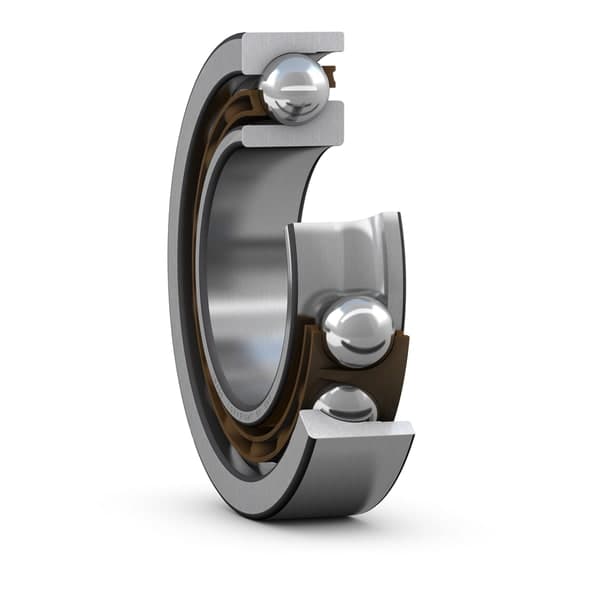

SKF 7308 SKF 7308 Angular Contact Ball Bearing
  • SKF 7308 SKF 7308 Angular Contact Ball Bearing

SKF

SKF 7308 Angular Contact Ball Bearing 40 × 90 × 23 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLPXT6CYGH
Category
Angular Contact Ball Bearing
Bore
40 mm
Outer Ø
90 mm
Width
23 mm

Overview

SKF 7308: a plain angular contact ball bearing with no suffix measuring 40 × 90 × 23 mm (bore × OD × width).

Kovar lists 15 SKF variants in the 40×90×23 mm size; the closest to the 7308 are 7308ACCBM, 7308BE-2RZP (40° contact angle, optimized internal design, Non-contact seals on both sides, Glass fibre reinforced PA66 cage), 7308BECBM (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance). Limiting speed is 9,000 rpm for the 7308 versus 15,000 rpm for the 7308ACCBM.

The same specification comes one size down as 7307 (35 mm bore) and one size up as 7309 (45 mm bore). Looking for the 7308 size from another brand? Options include FAG 7308 -B-MP, IBC 7308.BE, KOYO 7308, NSK 7308 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
≈m0.611 kgWeight
nϑr10000Reference speed
nG9000Limiting speed
α40 °Contact Angle (α)
C46.2 kNBasic Dynamic Load Rating (C)
C030.5 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d40Bore diameter
D90Outside diameter
B23Width

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

RFQ

Same size as SKF 7308, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
