SKF
Angular Contact Ball Bearing
RFQ
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

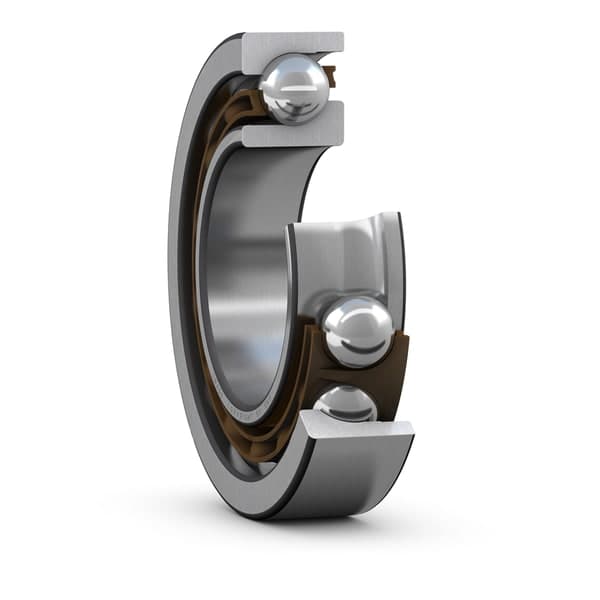

SKF 7313: a plain angular contact ball bearing with no suffix measuring 65 × 140 × 33 mm (bore × OD × width).
Kovar lists 13 SKF variants in the 65×140×33 mm size; the closest to the 7313 are 7313ACCBM, 7313BECBM (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance), 7313BECBP (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance, Glass fibre reinforced PA66 cage). Limiting speed is 5,600 rpm for the 7313 versus 9,500 rpm for the 7313ACCBM.
The same specification comes one size down as 7312 (60 mm bore) and one size up as 7314 (70 mm bore). Looking for the 7313 size from another brand? Options include FAG 7313 -B-MP, IBC 7313.BE, KOYO 7313, NSK 7313 (check seal and clearance suffixes).
| Symbol | Value | Description |
|---|---|---|
| ≈m | 2.1 | Weight |
| nϑr | 6300 | Reference speed |
| nG | 5600 | Limiting speed |
| α | 40 ° | Contact Angle (α) |
| C | 108 kN | Basic Dynamic Load Rating (C) |
| C0 | 80 kN | Basic Static Load Rating (C0) |
| Symbol | Value | Description |
|---|---|---|
| d | 65 | Bore diameter |
| D | 140 | Outside diameter |
| B | 33 | Width |
Angular contact ball bearing
Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
RFQ
Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.
