  1. Home
  2. /Bearings
  3. /SKF 7316 Angular Contact Ball Bearing
SKF

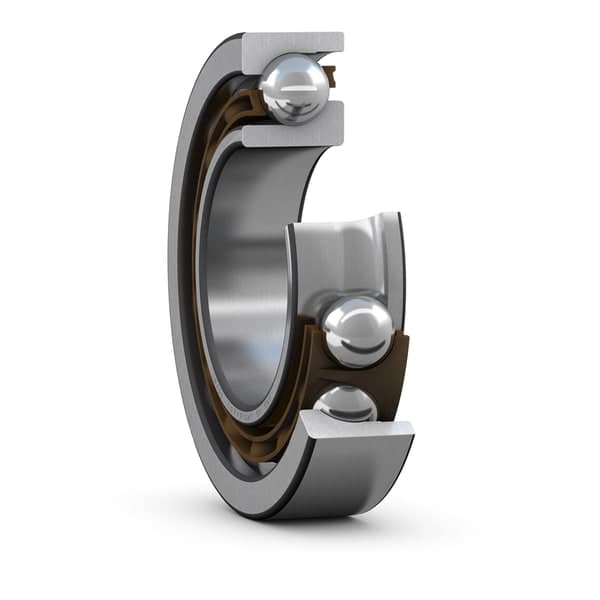

SKF 7316 SKF 7316 Angular Contact Ball Bearing
  • SKF 7316 SKF 7316 Angular Contact Ball Bearing

SKF

SKF 7316 Angular Contact Ball Bearing 80 × 170 × 39 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLDMSFCVBD
Category
Angular Contact Ball Bearing
Bore
80 mm

Overview

The SKF 7316 is a plain angular contact ball bearing with no suffix, 80 × 170 × 39 mm (bore × OD × width).

Kovar lists 9 SKF variants in the 80×170×39 mm size; the closest to the 7316 are 7316BECBM (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance), 7316BECBP (40° contact angle, optimized internal design, Universally matchable, Normal axial internal clearance, Glass fibre reinforced PA66 cage), 7316BEGAM (40° contact angle, optimized internal design, Single bearing for universal matching, light preload). Limiting speed is 4,500 rpm for the 7316 versus 6,700 rpm for the 7316BECBM.

The same specification comes one size down as 7315 (75 mm bore) and one size up as 7317 (85 mm bore). Parts from other brands with the same dimensions as the 7316 include FAG 7316 -B-MP, IBC 7316.BE, KOYO 7316, NSK 7316; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
C135 kNBasic dynamic load rating
C0110 kNBasic static load rating
nϑr5 000 r/minReference speed
nG4 500 r/minLimiting speed
≈m3.64 kgWeight

Dimensions

SymbolValueDescription
d80 mmBore diameter
D170 mmOutside diameter
B39 mmWidth
α40 °Contact angle

Mounting Dimensions

SymbolValueDescription
damin. 92 mmda
Damax. 158 mmDa
Dbmax. 163 mmDb
ramax. 2 mmra
rbmax. 1 mmrb

Related Parts

CodeDescription
Contact typeNormal contact (four-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer ring
CageNon-metallic
Matched arrangementNo
Universally matchable bearingNo
Axial internal clearanceNot applicable
Tolerance classNormal
Material, bearingBearing steel
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight3.64 kg
eClass code23-05-08-03
UNSPSC code31171531

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

Datasheet

📄datasheet pdf download

RFQ
