  1. Home
  2. /Bearings
  3. /SKF 7324 Angular Contact Ball Bearing
SKF

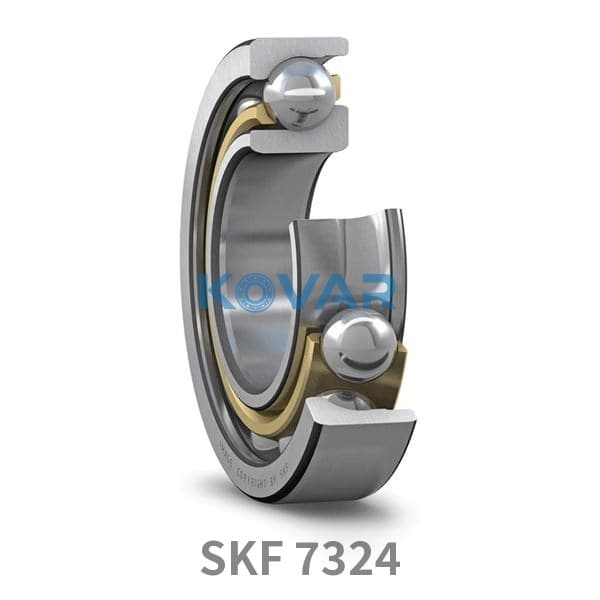

SKF 7324 SKF 7324 Angular Contact Ball Bearing
  • SKF 7324 SKF 7324 Angular Contact Ball Bearing

SKF

SKF 7324 Angular Contact Ball Bearing 120 × 260 × 55 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLSEG9MR5X
Category
Angular Contact Ball Bearing
Bore
120 mm

Overview

SKF 7324: a plain angular contact ball bearing with no suffix measuring 120 × 260 × 55 mm (bore × OD × width).

Kovar lists 2 SKF variants in the 120×260×55 mm size; the closest to the 7324 are 7324BCBM (40° contact angle, Universally matchable, Normal axial internal clearance).

The same specification comes one size down as 7322 (110 mm bore) and one size up as 7326 (130 mm bore). Looking for the 7324 size from another brand? Options include FAG 7324 -B-MP, IBC 7324.BE, KOYO 7324, NSK 7324 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
C238 kNBasic dynamic load rating
C0250 kNBasic static load rating
nϑr3 200 r/minReference speed
nG3 600 r/minLimiting speed
≈m13.5 kgWeight

Dimensions

SymbolValueDescription
d120 mmBore diameter
D260 mmOutside diameter
B55 mmWidth
α40 °Contact angle

Mounting Dimensions

SymbolValueDescription
damin. 134 mmda
Damax. 246 mmDa
Dbmax. 253 mmDb
ramax. 2.5 mmra
rbmax. 1 mmrb

Related Parts

CodeDescription
Contact typeNormal contact (four-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer ring
CageMachined brass
Matched arrangementNo
Universally matchable bearingYes
Axial internal clearanceNot applicable
Matched condition (axial clearance / preload)Light preload
Tolerance class클래스 6 (P6)
Material, bearingBearing steel
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight13.5 kg
eClass code23-05-08-03
UNSPSC code31171531

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

Datasheet

📄datasheet pdf download

RFQ

Same size as SKF 7324, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 7324-B-MP Angular Contact Ball Bearing

    FAG

    7324-B-MP

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • IBC
    IBC IBC 7324.BE Angular Contact Ball Bearing

    IBC

    7324.BE

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 7324 Angular Contact Ball Bearing

    KOYO

    7324

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NSK
    NSK NSK 7324 Angular Contact Ball Bearing

    NSK

    7324

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 7324 Angular Contact Ball Bearing

    NTN

    7324

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 7324BCBM Angular Contact Ball Bearing

    SKF

    7324BCBM

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 7324-B-MP-UA Angular Contact Ball Bearing

    FAG

    7324-B-MP-UA

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • KOYO
    KOYO KOYO 7324BFY Angular Contact Ball Bearing

    KOYO

    7324BFY

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
