  1. Home
  2. /Bearings
  3. /SKF 7336 Angular Contact Ball Bearing
SKF

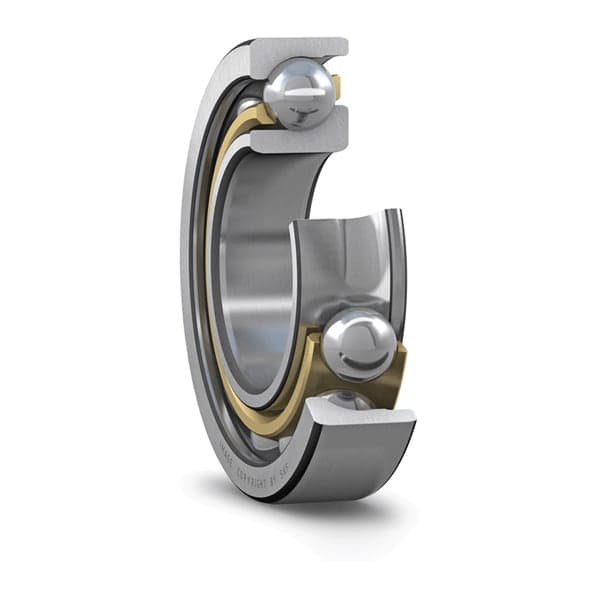

SKF 7336 SKF 7336 Angular Contact Ball Bearing
  • SKF 7336 SKF 7336 Angular Contact Ball Bearing

SKF

SKF 7336 Angular Contact Ball Bearing 180 × 380 × 75 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

NWJG65AWDZ
Category
Angular Contact Ball Bearing
Bore
180 mm
Outer Ø
380 mm
Width
75 mm

Overview

The SKF 7336 is a plain angular contact ball bearing with no suffix, 180 × 380 × 75 mm (bore × OD × width).

Kovar lists 2 SKF variants in the 180×380×75 mm size; the closest to the 7336 are 7336BCBM (40° contact angle, Universally matchable, Normal axial internal clearance).

The same specification comes one size down as 7330 (150 mm bore) and one size up as 7340 (200 mm bore). Parts from other brands with the same dimensions as the 7336 include FAG 7336-B-MP, KOYO 7336, NSK 7336, NTN 7336; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
≈m40Weight
nϑr2200Reference speed
nG2400Limiting speed
α40 °Contact Angle (α)
C410 kNBasic Dynamic Load Rating (C)
C0540 kNBasic Static Load Rating (C0)

Dimensions

SymbolValueDescription
d180Bore diameter
D380Outside diameter
B75Width

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
