  1. Home
  2. /Bearings
  3. /SKF 7407 Angular Contact Ball Bearing
SKF

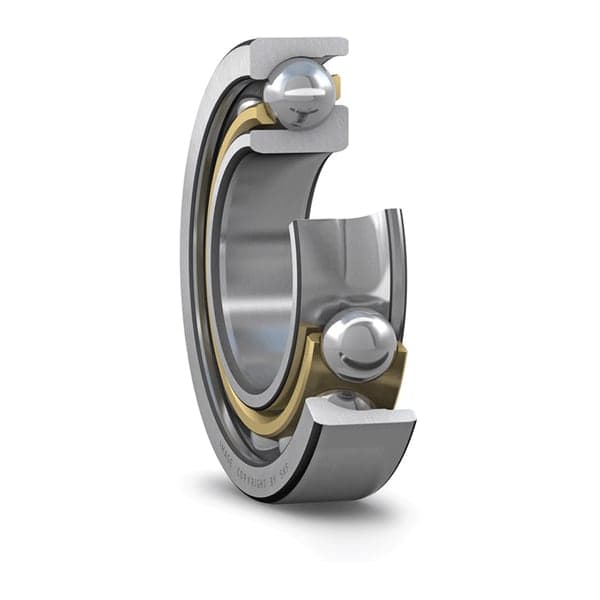

SKF 7407 SKF 7407 Angular Contact Ball Bearing
  • SKF 7407 SKF 7407 Angular Contact Ball Bearing

SKF

SKF 7407 Angular Contact Ball Bearing 35 × 100 × 25 mm

Angular Contact Ball Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLGWAYSH1P
Category
Angular Contact Ball Bearing
Bore
35 mm

Overview

SKF 7407: a plain angular contact ball bearing with no suffix measuring 35 × 100 × 25 mm (bore × OD × width).

Kovar lists 2 SKF variants in the 35×100×25 mm size; the closest to the 7407 are 7407BCBM (40° contact angle, Universally matchable, Normal axial internal clearance). The 7407 weighs 1.05 kg, compared with 1.06 kg for the 7407BCBM.

The same specification also comes in an adjacent size: 7416 (80 mm bore). Looking for the 7407 size from another brand? Options include FAG 7407 -B-MP, NSK 7407BG, NTN 7407 (check seal and clearance suffixes).

Main Dimensions & Performance

SymbolValueDescription
C60.5 kNBasic dynamic load rating
C038 kNBasic static load rating
nϑr9 000 r/minReference speed
nG12 000 r/minLimiting speed
≈m1.05 kgWeight

Dimensions

SymbolValueDescription
d35 mmBore diameter
D100 mmOutside diameter
B25 mmWidth
α40 °Contact angle

Mounting Dimensions

SymbolValueDescription
damin. 55 mmda
Damax. 110 mmDa
Dbmax. 89.4 mmDb
ramax. 2 mmra
rbmax. 2 mmrb

Related Parts

CodeDescription
Contact typeNormal contact (four-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer ring
CageMachined brass
Matched arrangementNo
Axial internal clearanceNot applicable
Tolerance classNormal
Material, bearingBearing steel
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight1.05 kg
eClass code23-05-08-03
UNSPSC code31171531

Product description

Angular contact ball bearing

Angular contact ball bearings have raceways offset to form a contact angle, accommodating radial loads and axial loads in one direction simultaneously. Mounted in pairs (back-to-back, face-to-face or tandem), they support axial loads in both directions and moment loads. Their high precision and rigidity make them suitable for machine-tool spindles, pumps and gear units.

Key features

  • ·Radial plus single-direction axial load
  • ·Paired arrangements for bidirectional/moment loads
  • ·High precision and rigidity
  • ·Suited to high-speed spindles

Typical applications

  • ·Machine tool spindles and support shafts
  • ·Pumps and compressors
  • ·High-speed motors
  • ·Precision gearboxes and robot drives

Selection guidance

Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.

Datasheet

📄datasheet pdf download

RFQ

Same size as SKF 7407, different specification

Same bearing type, bore × outside diameter × width and base designation, but seals, internal clearance, bore shape or precision may differ. Check the suffix before ordering.

  • FAG
    FAG FAG 7407-B-XL-MP-UA Angular Contact Ball Bearing

    FAG

    7407-B-XL-MP-UA

    Angular Contact Ball Bearing

    US$91.89

    Excl. VAT

    ●

    In stock (5)

  • NSK
    NSK NSK 7407BG Angular Contact Ball Bearing

    NSK

    7407BG

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 7407 Angular Contact Ball Bearing

    NTN

    7407

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • SKF
    SKF SKF 7407BCBM Angular Contact Ball Bearing

    SKF

    7407BCBM

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 7407-B-MP Angular Contact Ball Bearing

    FAG

    7407-B-MP

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 7407B Angular Contact Ball Bearing

    NTN

    7407B

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • FAG
    FAG FAG 7407-B-MP-UA Angular Contact Ball Bearing

    FAG

    7407-B-MP-UA

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.

  • NTN
    NTN NTN 7407BG Angular Contact Ball Bearing

    NTN

    7407BG

    Angular Contact Ball Bearing

    This product is quote-only — please send an inquiry for pricing and availability.
