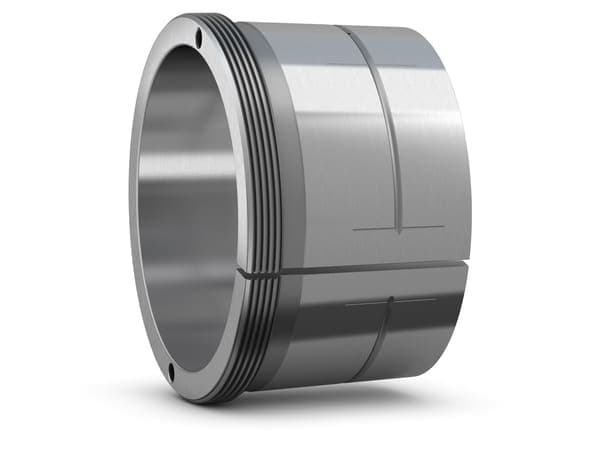

SKF AOH3068G Withdrawal Sleeve

Withdrawal Sleeve

RFQ

Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Withdrawal Sleeve

Overview

SKF AOH3068G Withdrawal Sleeve is a bearing accessory used to mount and dismount tapered-bore bearings on stepped or cylindrical shafts. It improves serviceability of large spherical roller bearings and helps release the bearing inner ring safely.

A sleeve with tapered outside diameter is positioned between bearing bore and shaft. A nut or hydraulic tool moves the sleeve to clamp or release the bearing.

Key features

Supports dismounting of tapered-bore bearings
Improves maintenance of large bearings
Reduces risk of shaft damage
Can assist clearance adjustment

Typical applications

Large spherical roller bearings
Steel and paper machinery
Large fan and blower shafts
Mining and cement equipment

Selection guidance

Check bearing bore, shaft diameter, sleeve series, dismounting space, and nut or hydraulic tool compatibility.

Symbol	Value	Description
d	320 mm	Bore diameter
B	162 mm	Width
G	Tr 360x5	Thread designation

Code	Description
테이퍼	1:12
주입용 구멍	Included
제품 순 중량	16.8 kg
eClass 코드	23-11-07-05
UNSPSC 코드	31163218

datasheet pdf download
