SKF AS140180 Needle Roller Bearing 140 × 180 × 1 mm

Overview

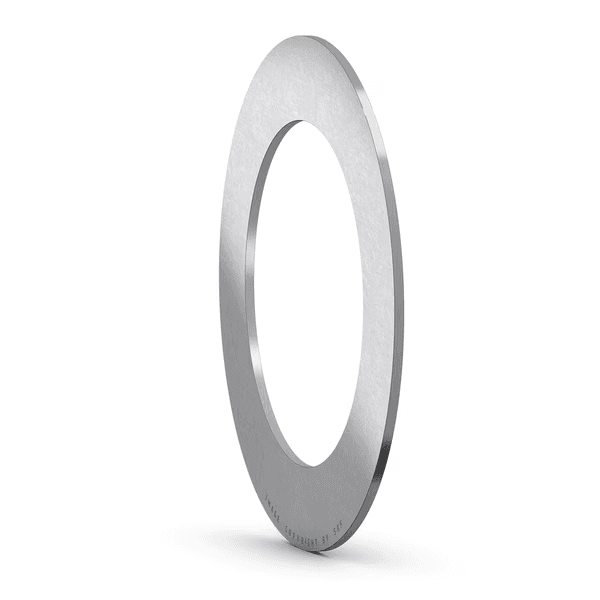

AS thin universal washer for needle roller thrust bearings

Thin universal washers for needle roller thrust bearings are supplied as separate components. They are made of spring steel and hardened, and both faces of the washers are polished and can be used as raceways. The washers can provide cost-effective solutions, if the adjacent machine components are not hardened, but have adequate stiffness, and the requirements to run-out are moderate. They can be used as shaft or housing washers for AXK series bearings, and as shaft washers for AXW series bearings.

Selection guidance

Check mounting envelope, inner ring requirement, shaft surface hardness, lubrication, load, and speed range.
