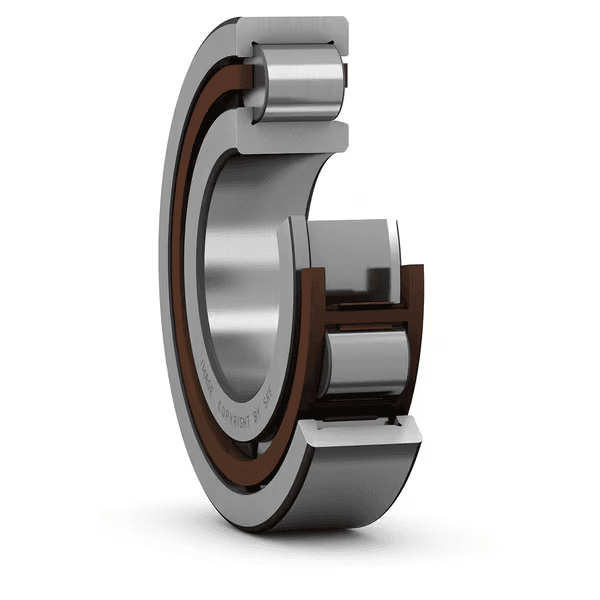

SKF BC1-0312 Cylindrical Roller Bearing 25 × 52 × 15 mm

Overview

Single row cylindrical roller bearing, NJF design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJF design bearings can accommodate axial displacement in one direction. A retaining ring on the inner ring provides a shoulder to hold the bearing components in place. The retaining ring should not be loaded axially during operation.

Selection guidance

Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.
