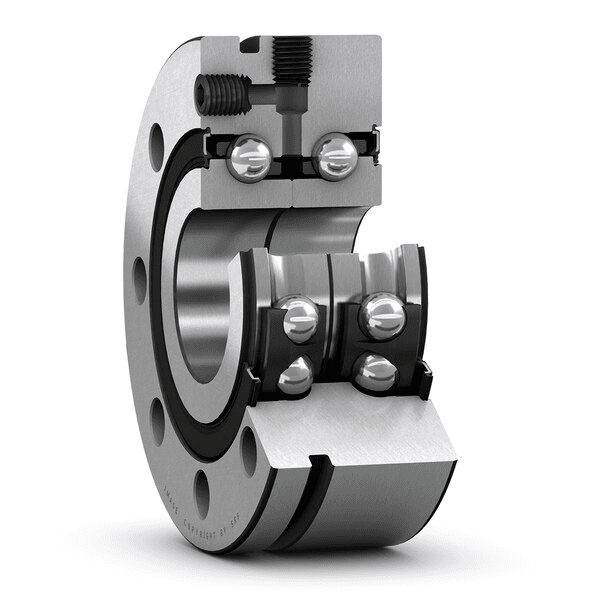

SKF BEAM 017062 C-2RSH Thrust Ball Bearing 17 × 62 × 25 mm

Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting

Thrust Ball Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Thrust Ball Bearing
Dimensions: 17x62x25mm

Overview

Super-precision double direction angular contact thrust ball bearing for screw drives, for bolt mounting

These double direction angular contact thrust ball bearings are well suited for screw drive applications, but are also beneficial in other applications, where reliable radial and axial support is required, together with extremely precise axial guidance of the shaft. The BEAM series bearings have an outer ring that is much thicker than with the BEAS series, and they are equipped with through holes for attachment bolts, which makes the mounting process simple.

Key features

Accommodate radial loads, and axial loads in both directions
Greased and sealed as standard
Ready to mount
Easy to relubricate

Typical applications

Vertical motors and pumps
Rotary tables
Screw jacks and lifting devices
Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

Symbol	Value	Description
C	21.2 kN	Basic dynamic load rating
C0	37.5 kN	Basic static load rating
grease_speed_rpm	4 300 r/min	Attainable grease lubrication speed

Symbol	Value	Description
d	17 mm	Bore diameter
D	62 mm	Outside diameter
H	25 mm	Height
α	60 °	Contact angle

Symbol	Value	Description
da	min. 23 mm	da
Da	max. 37 mm	Da
ra	max. 0.3 mm	ra

Accommodates radial loads and axial loads in both directions
Grease lubricated and sealed as standard
Ready to mount
Easy relubrication

Code	Description
축방향 하중 역량	Both directions
열 개수	2
로케이팅 기능, 베어링 외륜	Bolt hole
하우징 와셔 타입(복열 앵귤러 콘택트 스러스트 볼 베어링)	One-piece
케이지	Non-metallic
단일 베어링, 보편적 일치, 개별 배송됨	No
씰링	Seal on both sides
씰링 유형	Contact type
윤활유	Grease
재윤활 기능	Included
제품 순 중량	0.446 kg
eClass 코드	23-05-08-03
UNSPSC 코드	31171507
