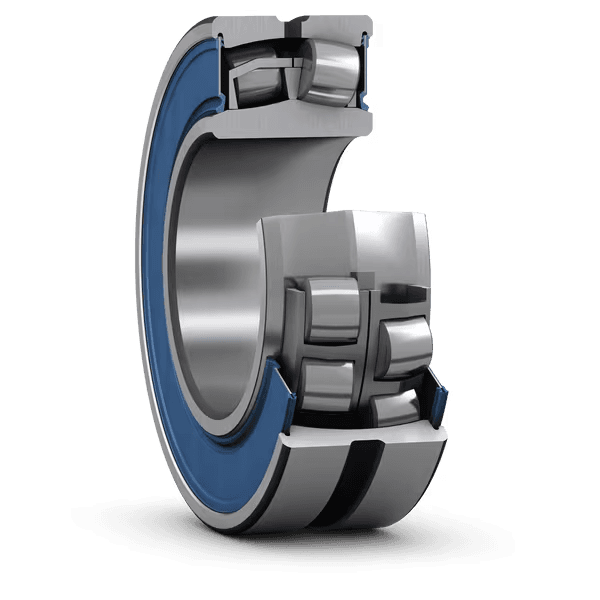

SKF BS2-2215-2RS/GFP9VA944 Spherical Roller Bearing 75 × 130 × 38 mm

SKF Food line spherical roller bearing

Spherical Roller Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Spherical Roller Bearing
Dimensions: 75x130x38mm

Overview

SKF Food line spherical roller bearing

SKF Food line spherical roller bearings are compliant with food safety regulations. Designed with food grade seals and grease, they enhance food safety, increase reliability and support sustainable development. Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature.

Key features

Compliant with food safety regulations
Accommodate misalignment up to 0.5 degree
High load carrying capacity
Sealed for increased reliability, with relubrication features
Low friction and long service life
Increased wear resistance

Typical applications

Conveyor pulleys
Crushers, screens, and mining equipment
Steel and paper machinery
Wind turbines and heavy machinery

Selection guidance

Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.

Symbol	Value	Description
C	217 kN	Basic dynamic load rating
C0	240 kN	Basic static load rating
limiting_speed_rpm	290 r/min	Limiting speed
performance_class	SKF Explorer	SKF performance class

Symbol	Value	Description
d	75 mm	Bore diameter
D	130 mm	Outside diameter
B	38 mm	Width

Symbol	Value	Description
da	max. 84.5 mm	da
Da	max. 121 mm	Da
ra	max. 1.5 mm	ra

Compliant with food safety regulations
Accommodate misalignment up to 0.5 degree
High load carrying capacity
Sealed for increased reliability
with relubrication features
Low friction and long service life
Increased wear resistance

Code	Description
열 개수	2
로케이팅 기능, 베어링 외륜	None
보어 유형	Cylindrical
케이지	Sheet metal
경방향 내부틈새	CN
치수에 대한 공차 등급	Normal
런아웃 공차 등급	P5
씰링	Seal on both sides
씰링 유형	Contact type
윤활유	Food-grade oil
재윤활 기능	Included
제품 순 중량	1.93 kg
eClass 코드	23-05-09-11
UNSPSC 코드	31171510
