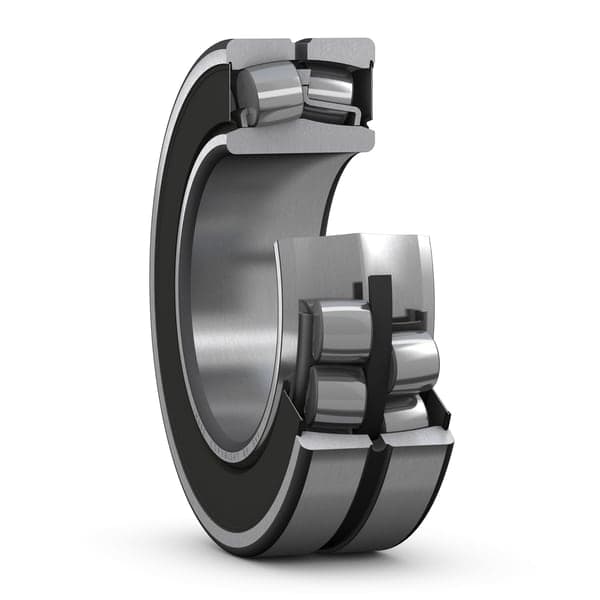

SKF BS2-2224-2RS5K/VT143 Spherical Roller Bearing 120 × 215 × 69 mm

Spherical Roller Bearing

RFQ

Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Spherical Roller Bearing
Dimensions: 120x215x69mm

Overview

Spherical roller bearing

Spherical roller bearings have two rows of barrel-shaped rollers running on a common spherical outer raceway, providing self-aligning capability. They accommodate very high radial loads and axial loads in both directions, absorbing misalignment from shaft deflection or mounting errors with virtually no increase in friction. They suit heavy-duty service in demanding environments such as paper mills, mining and wind power.

Key features

Self-aligning, absorbs misalignment
Very high radial and axial loads
Heavy-duty in harsh environments
Sealed variants for higher reliability

Typical applications

Conveyor pulleys
Crushers, screens, and mining equipment
Steel and paper machinery
Wind turbines and heavy machinery

Selection guidance

Review load, speed, misalignment, lubrication method, bore type, and adapter sleeve requirements before selection.

Symbol	Value	Description
C	652 kN	Basic dynamic load rating
C0	780 kN	Basic static load rating
limiting_speed_rpm	1 400 r/min	Limiting speed
performance_class	SKF Explorer	SKF performance class

Symbol	Value	Description
d	120 mm	Bore diameter
D	215 mm	Outside diameter
B	69 mm	Width

Symbol	Value	Description
da	max. 136 mm	da
Da	max. 203 mm	Da
ra	max. 2 mm	ra

Code	Description
열 개수	2
로케이팅 기능, 베어링 외륜	None
보어 유형	Taper 1:12
케이지	Sheet metal
경방향 내부틈새	CN
치수에 대한 공차 등급	Normal
런아웃 공차 등급	P5
씰링	Seal on both sides
씰링 유형	Contact type
윤활유	Grease
재윤활 기능	Included
재제조가능여부	Yes
제품 순 중량	9.75 kg
eClass 코드	23-05-09-11
UNSPSC 코드	31171510

datasheet pdf download
