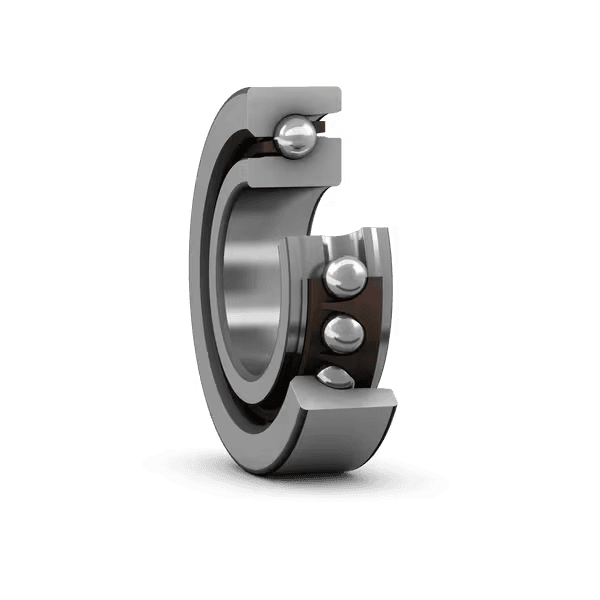

SKF BSD 55100 CGA Thrust Ball Bearing 55 × 100 × 20 mm

Super-precision single direction angular contact thrust ball bearing

Thrust Ball Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Thrust Ball Bearing
Dimensions: 55x100x20mm

Overview

Super-precision single direction angular contact thrust ball bearing

These super-precision ball bearings offer very high running accuracy and are well suited for screw drive applications. They are also beneficial in other applications, where safe radial and axial support is required, together with extremely precise axial guidance of the shaft. They provide a high degree of axial stiffness and can accommodate heavy axial loads in one direction, high speeds and rapid accelerations.

Key features

Very high running accuracy
High axial stiffness
High axial load carrying capacity in one direction
Universally matchable
Well suited for screw drive applications

Typical applications

Vertical motors and pumps
Rotary tables
Screw jacks and lifting devices
Low- to medium-speed axial support positions

Selection guidance

Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.

Symbol	Value	Description
C	67 kN	Basic dynamic load rating
C0	193 kN	Basic static load rating
grease_speed_rpm	5 600 r/min	Attainable grease lubrication speed
oil_air_speed_rpm	6 700 r/min	Attainable oil-air lubrication speed

Symbol	Value	Description
d	55 mm	Bore diameter
D	100 mm	Outside diameter
H	20 mm	Height
α	62 °	Contact angle

Symbol	Value	Description
da	min. 67 mm	da
db	min. 65 mm	db
Da	max. 91 mm	Da
Db	max. 90.5 mm	Db
ra	max. 1.5 mm	ra

Very high running accuracy
Accommodates high axial loads in one direction
Universal matching
Suitable for screw drive applications

Code	Description
축방향 하중 역량	Single row
열 개수	1
로케이팅 기능, 베어링 외륜	None
케이지	Non-metallic
공차 클래스	Special
소재, 베어링	Bearing steel
코팅	None
씰링	None
재윤활 기능	None
제품 순 중량	0.65 kg
eClass 코드	23-05-08-03
UNSPSC 코드	31171507

datasheet pdf download
