SKF
CARB toroidal roller bearing with tapered bore (1:30)
Self-Aligning Ball Bearing
RFQ
Estimated delivery: 9 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

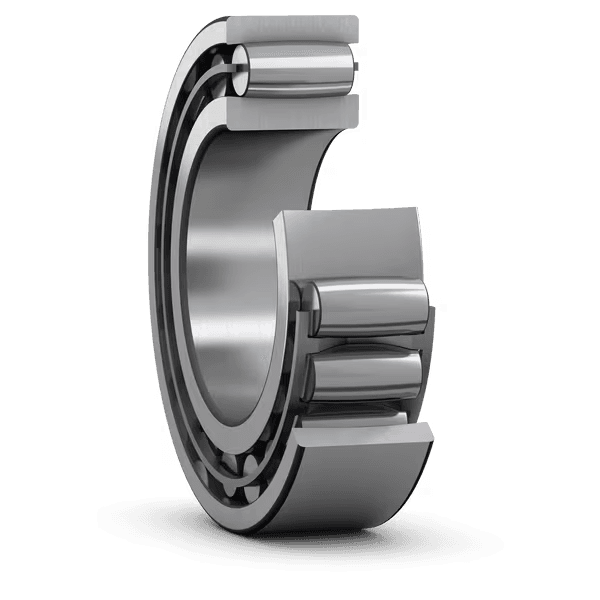

CARB toroidal roller bearing with tapered bore (1:30)
CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.
Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.
| Symbol | Value | Description |
|---|---|---|
| C | 765 kN | Basic dynamic load rating |
| C0 | 1 160 kN | Basic static load rating |
| reference_speed_rpm | 1 700 r/min | Reference speed |
| limiting_speed_rpm | 2 400 r/min | Limiting speed |
| performance_class | SKF Explorer | SKF performance class |
| Symbol | Value | Description |
|---|---|---|
| d | 160 mm | Bore diameter |
| D | 240 mm | Outside diameter |
| B | 80 mm | Width |
| Code | Description |
|---|---|
| 열 개수 | 1 |
| 로케이팅 기능, 베어링 외륜 | None |
| 보어 유형 | Taper 1:30 |
| 케이지 | Sheet metal |
| 경방향 내부틈새 | C4 |
| 공차 클래스 | Normal |
| 씰링 | None |
| 윤활유 | None |
| 재윤활 기능 | None |
| 재제조가능여부 | Yes |
| 제품 순 중량 | 12.8 kg |
| eClass 코드 | 23-05-09-13 |
| UNSPSC 코드 | 31171505 |
