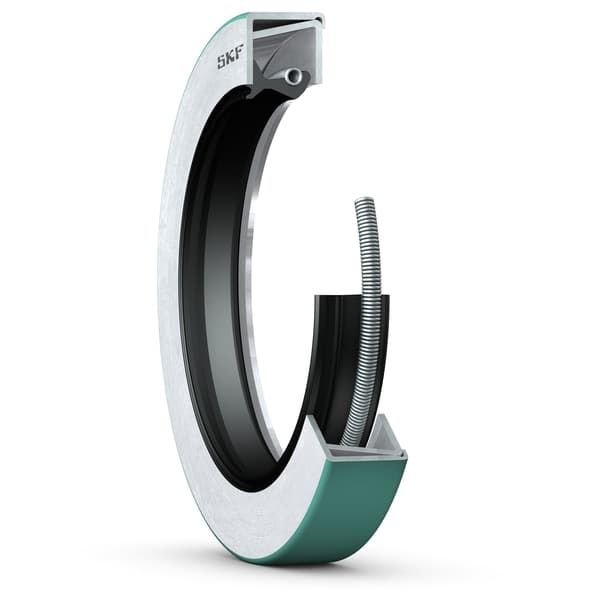

SKF CR54971 Rotary Shaft Seal

Radial Shaft / Oil Seals

Rotary Shaft Seal

RFQ

Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Rotary Shaft Seal

Overview

SKF CR54971 Rotary Shaft Seal reduces lubricant leakage and contamination ingress around rotating shafts. It is a small but critical component used near bearings, gearboxes, pumps, and motors to maintain lubrication and protect equipment life.

The seal consists of an elastic lip and reinforcement or outer support structure. The lip contacts the shaft surface to provide sealing, with single-lip, double-lip, and low-friction variants selected by speed and contamination level.

Key features

Reduces lubricant leakage
Helps block dust and moisture ingress
Protects bearing service life
Fits compact mounting spaces

Typical applications

Gearbox output shafts
Pump and motor shafts
Needle bearing adjacent positions
Small industrial rotating equipment

Selection guidance

Verify shaft diameter, outside diameter, width, lip design, material, speed, temperature, and lubricant type.

Symbol	Value	Description
limiting_speed_rpm	1 620 r/min	Limiting speed
max_operating_temp_c	100 °C	Maximum operating temperature
perf_최소_작동_온도	-40 °C	최소 작동 온도
perf_허용가능한_원주_속도	12 m/s	허용가능한 원주 속도
perf_회전_속도	1 620 r/min	회전 속도

Symbol	Value	Description
d	139.7 mm	Shaft diameter
D	171.45 mm	하우징 보어 직경
B	12.7 mm	씰 너비

Code	Description
설계	CRWHA1
보조 립	Yes
씰링 립 재료	니트릴 고무(NBR)
외경 유형	외경에 실란트 코팅이 된 금속 케이스
유닛 시스템	Inch
제품 순 중량	0.208 kg
eClass 코드	23-07-08-01
UNSPSC 코드	31181602

datasheet pdf download
