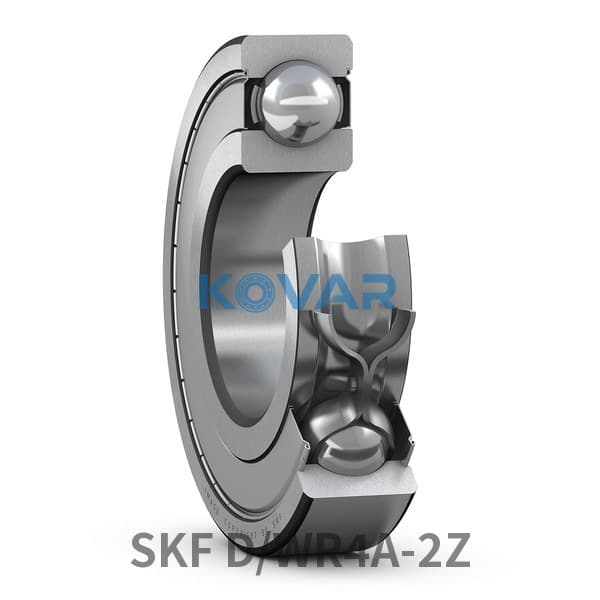

SKF D/WR4A-2Z Deep Groove Ball Bearing

Deep Groove Ball Bearing

RFQ

Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Deep Groove Ball Bearing

Overview

Deep groove ball bearing

Deep groove ball bearings are the most widely used, versatile bearing type. With deep raceway grooves in both rings, they accommodate radial loads and axial loads in both directions simultaneously. Their simple design enables low friction and high-speed operation, and seal/shield variants retain lubricant and exclude contamination. They serve as standard components in motors, pumps, gear units and a wide range of equipment.

Key features

Accommodate radial and bidirectional axial loads
Low friction, high-speed capable
Seal/shield options reduce maintenance
Highly versatile and interchangeable

Typical applications

Electric motors and generators
Pumps, fans, and blowers
Gearboxes and reducers
Conveyors and general industrial machinery

Selection guidance

Select by bore, outside diameter, width, sealing type, internal clearance, speed rating, and actual radial/axial load conditions.

Symbol	Value	Description
C	1.53 kN	Basic dynamic load rating
C0	0.585 kN	Basic static load rating
reference_speed_rpm	80 000 r/min	Reference speed
limiting_speed_rpm	40 000 r/min	Limiting speed

Symbol	Value	Description
d	d	Bore diameter
D	D	Outside diameter
B	B	Width
dim_숄더_직경	D1	숄더 직경
dim_리세스_직경	D2	리세스 직경
r	r1,2	Chamfer dimension

Symbol	Value	Description
da	max. 8.4 mm	da
Da	max. 16.6 mm	Da
ra	max. 0.4 mm	ra

Code	Description
필링 슬롯	None
열 개수	1
로케이팅 기능, 베어링 외륜	None
보어 유형	Cylindrical
케이지	Stamped stainless steel
일치된 배열	No
경방향 내부틈새	CN
소재, 베어링	Stainless steel
코팅	None
씰링	Shield on both sides
씰링 유형	Non-contact
윤활유	Grease
재윤활 기능	None
제품 순 중량	0.006 kg
eClass 코드	23-05-08-01
UNSPSC 코드	31171504
