SKF

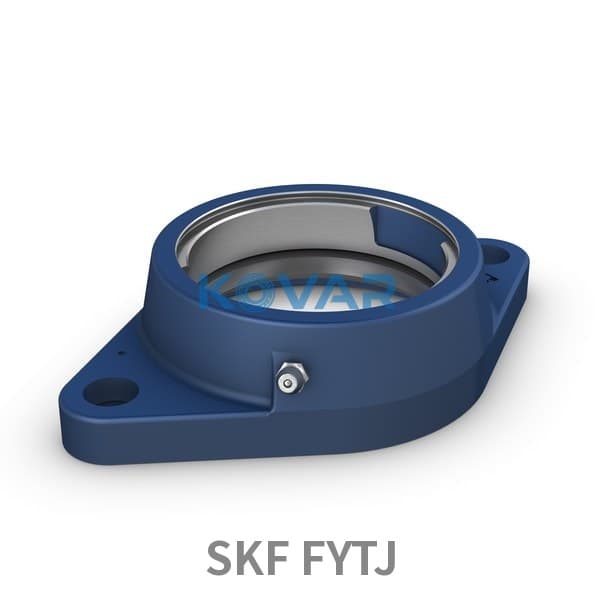

SKF FYTJ Radial Insert Ball Bearing
Radial insert ball bearing (Y-bearing)
Radial Insert Ball Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
Restocking soon · Inquire
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Radial Insert Ball Bearing
Overview
Radial insert ball bearing (Y-bearing)
Radial insert ball bearings (Y-bearings) have a spherical outside surface and an extended inner ring, easily locked to the shaft by set screws or an eccentric collar. Combined with a housing they form flanged or pillow block units and accommodate a degree of initial misalignment.
Key features
- Simple locking by set screw/eccentric collar
- Spherical OD accommodates initial misalignment
- Form housing units
- Sealed for reduced maintenance
Typical applications
- Conveyor rollers
- Agricultural and food machinery
- Fans and blowers
- Packaging and handling equipment
Selection guidance
Check locking method, housing compatibility, seal design, lubrication, contamination level, and load condition.
| Symbol | Value | Description |
|---|---|---|
| D | 72 mm | 구형 시트 직경 |
| A | 34 mm | 하우징 전체 너비 |
| J | 130 mm | 볼트 구멍 사이의 중심 거리 |
| Code | Description |
|---|---|
| 하우징 유형 | 플랜지 |
| 플랜지 하우징 유형 | 타원형 |
| 패스너 볼트 구멍 개수 | 2 |
| 체결 볼트 구멍 유형 | 플레인 |
| 하우징 소재 | 주철 |
| 코팅 | None |
| 재윤활 구멍 | Included |
| 그리스 피팅 | Included |
| 제품 순 중량 | 0.83 kg |
| eClass 코드 | 23-05-16-02 |
| UNSPSC 코드 | 31171536 |
