| Symbol | Value | Description |
|---|---|---|
| C | 260 kN | Basic dynamic load rating |
| C0 | 415 kN | Basic static load rating |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

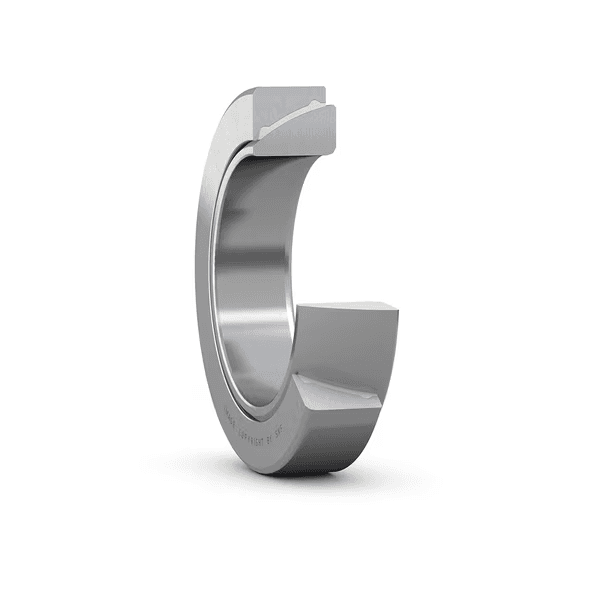

SKF GAC120 F Spherical Plain Bearing
Angular contact spherical plain bearing, maintenance-free, metric sizes
Spherical Plain Bearing
RFQ
Estimated delivery: 10 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 10 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Spherical Plain Bearing
Overview
Angular contact spherical plain bearing, maintenance-free, metric sizes
Angular contact spherical plain bearings are designed to accommodate combined radial and axial loads. Single bearings can accommodate axial loads acting in one direction. This specific design includes a steel/PTFE FRP sliding contact surface combination that is maintenance-free. However, relubrication, which can be applied from both sides, can extend bearing service life.
Key features
- Designed for combined radial and axial loads
- Separable inner and outer rings enable easier mounting
- Long service life and maintenance-free
- Relatively insensitive to contaminants
- Low coefficient of friction
Typical applications
- Hydraulic cylinder rod ends
- Construction machinery linkages
- Agricultural joints
- Industrial pivot structures
Selection guidance
Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.
| Symbol | Value | Description |
|---|---|---|
| d | 120 mm | Bore diameter |
| D | 180 mm | Outside diameter |
| B | 38 mm | Inner ring width |
| C | 37 mm | Outer ring width |
| Symbol | Value | Description |
|---|---|---|
| da | max. 134 mm | da |
| db | max. 155 mm | db |
| Da | min. 140 mm | Da |
| Db | min. 169 mm | Db |
| ra | max. 2.5 mm | ra |
- Designed for combined radial and axial loads
- Separable inner and outer rings for easier mounting
- Long service life and maintenance-free
- Relatively insensitive to contaminants
- Low coefficient of friction
| Code | Description |
|---|---|
| 슬라이딩 접촉면 조합 | Steel/PTFE FRP |
| 내륜 소재 | Bearing steel |
| 외륜 소재 | Bearing steel |
| 유지보수 | Maintenance-free |
| 씰링 | None |
| 재윤활 기능 | None |
| 제품 순 중량 | 3.73 kg |
| eClass 코드 | 23-05-01-06 |
| UNSPSC 코드 | 31171515 |
