| Symbol | Value | Description |
|---|---|---|
| C | 5.85 kN | Basic dynamic load rating |
| C0 | 14.6 kN | Basic static load rating |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

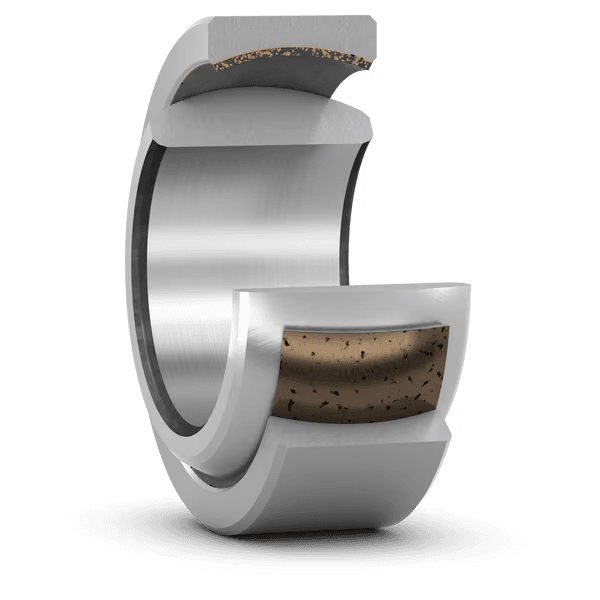

SKF GE 8 C Spherical Plain Bearing
Radial spherical plain bearing, maintenance-free, metric sizes
Spherical Plain Bearing
RFQ
Restocking soon · Inquire
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Spherical Plain Bearing
Overview
Radial spherical plain bearing, maintenance-free, metric sizes
These spherical plain bearings have a steel/PTFE sintered bronze contact surface combination and are maintenance-free. The sliding surfaces have to be externally protected from contaminants. These bearings are also available with a wider inner ring and a larger outside diameter (suffix GEH), which enable higher load ratings and larger tilt angles.
Key features
- Designed for radial and combined radial and axial loads
- Long service life and maintenance-free
- Suitable for heavy, constant direction loads
- Low coefficient of friction
- High operating temperatures
- High sliding velocities and small operating clearances
Typical applications
- Hydraulic cylinder rod ends
- Construction machinery linkages
- Agricultural joints
- Industrial pivot structures
Selection guidance
Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.
| Symbol | Value | Description |
|---|---|---|
| d | 8 mm | Bore diameter |
| D | 16 mm | Outside diameter |
| B | 8 mm | Inner ring width |
| C | 5 mm | Outer ring width |
| Symbol | Value | Description |
|---|---|---|
| da | max. 10.2 mm | da |
| Da | max. 14.6 mm | Da |
| ra | max. 0.3 mm | ra |
| rb | max. 0.3 mm | rb |
- Designed for combined radial and axial loads
- Long service life and maintenance-free
- Low coefficient of friction
- High operating temperature
- High sliding speed with small operating clearance
| Code | Description |
|---|---|
| 슬라이딩 접촉면 조합 | Steel/PTFE sintered bronze |
| 내륜 소재 | Bearing steel |
| 외륜 소재 | Steel |
| 유지보수 | Maintenance-free |
| 씰링 | None |
| 재윤활 기능 | None |
| 제품 순 중량 | 0.0066 kg |
| eClass 코드 | 23-05-01-06 |
| UNSPSC 코드 | 31171515 |
