| Symbol | Value | Description |
|---|---|---|
| C | 365 kN | Basic dynamic load rating |
| C0 | 1 220 kN | Basic static load rating |
| performance_class | SKF Explorer | SKF performance class |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

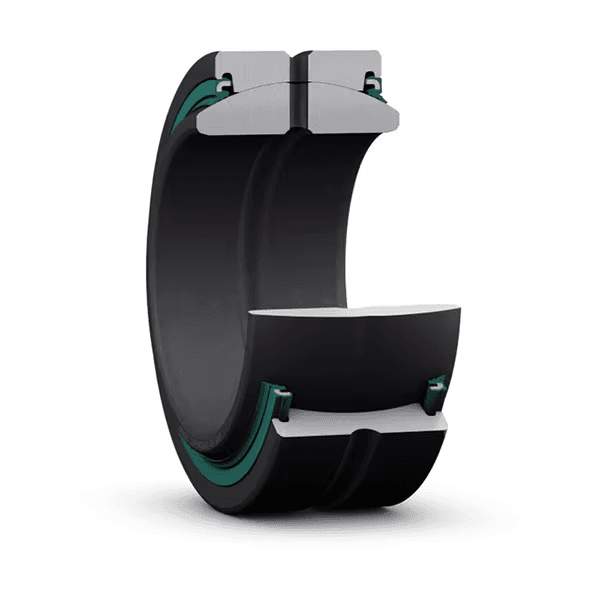

SKF GE60 ESX-2LS Spherical Plain Bearing
SKF Explorer radial spherical plain bearing, virtually maintenance-free, sealed, metric sizes
Spherical Plain Bearing
RFQ
Restocking soon · Inquire
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Spherical Plain Bearing
Overview
SKF Explorer radial spherical plain bearing, virtually maintenance-free, sealed, metric sizes
Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes an SKF Explorer steel/steel sliding contact surface combination. They are initially lubricated and have a triple-lip, heavy-duty contact seal on both sides. Compared to conventional steel/steel bearings, they have increased dynamic load ratings.
Key features
- Designed for radial and combined radial and axial loads
- Long service life
- Virtually maintenance-free
- Suitable for heavy static or impact loads
Typical applications
- Hydraulic cylinder rod ends
- Construction machinery linkages
- Agricultural joints
- Industrial pivot structures
Selection guidance
Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.
| Symbol | Value | Description |
|---|---|---|
| d | 60 mm | Bore diameter |
| D | 90 mm | Outside diameter |
| B | 44 mm | Inner ring width |
| C | 36 mm | Outer ring width |
| Symbol | Value | Description |
|---|---|---|
| da | max. 66.8 mm | da |
| Da | max. 84.2 mm | Da |
| ra | max. 1 mm | ra |
| rb | max. 1 mm | rb |
- Designed for combined radial and axial loads
- Long service life
- Almost maintenance-free
- Suitable for heavy static or shock loads
| Code | Description |
|---|---|
| 슬라이딩 접촉면 조합 | Steel/steel, SKF Explorer |
| 내륜 소재 | Bearing steel |
| 외륜 소재 | Bearing steel |
| 유지보수 | Virtually maintenance-free |
| 경방향 내부틈새 | CN |
| 씰링 | Seal on both sides |
| 씰링 유형 | Triple lip |
| 재윤활 기능 | Included |
| 제품 순 중량 | 0.985 kg |
| eClass 코드 | 23-05-01-06 |
| UNSPSC 코드 | 31171515 |
