| Symbol | Value | Description |
|---|---|---|
| C | 315 kN | Basic dynamic load rating |
| C0 | 1 560 kN | Basic static load rating |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

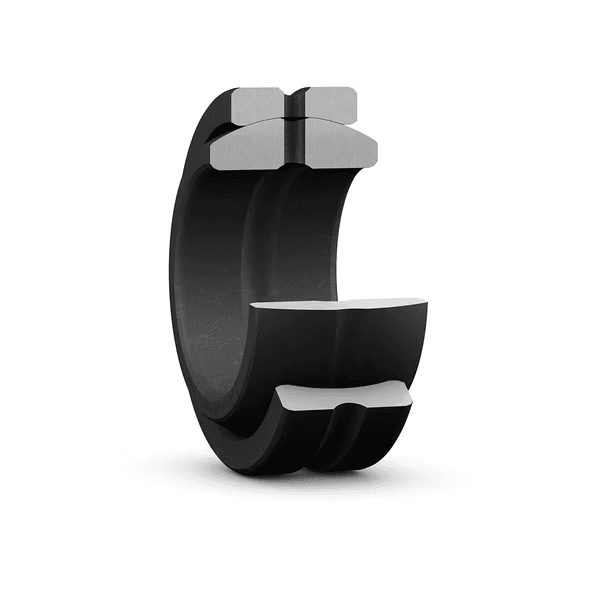

SKF GE70 ES Spherical Plain Bearing
Radial spherical plain bearing, requiring maintenance, metric sizes
Spherical Plain Bearing
RFQ
Estimated delivery: 10 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 10 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Spherical Plain Bearing
Overview
Radial spherical plain bearing, requiring maintenance, metric sizes
Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/steel sliding contact surface combination. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings.
Key features
- Designed for radial and combined radial and axial loads
- Suitable for heavy static, alternating or impact loads
Typical applications
- Hydraulic cylinder rod ends
- Construction machinery linkages
- Agricultural joints
- Industrial pivot structures
Selection guidance
Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.
| Symbol | Value | Description |
|---|---|---|
| d | 70 mm | Bore diameter |
| D | 105 mm | Outside diameter |
| B | 49 mm | Inner ring width |
| C | 40 mm | Outer ring width |
| Symbol | Value | Description |
|---|---|---|
| da | max. 77.9 mm | da |
| Da | max. 99 mm | Da |
| ra | max. 1 mm | ra |
| rb | max. 1 mm | rb |
- Designed for combined radial and axial loads
- Suitable for heavy static, alternating or shock loads
| Code | Description |
|---|---|
| 슬라이딩 접촉면 조합 | Steel/steel, standard |
| 내륜 소재 | Bearing steel |
| 외륜 소재 | Bearing steel |
| 유지보수 | Relubrication required |
| 경방향 내부틈새 | CN |
| 씰링 | None |
| 재윤활 기능 | Included |
| 제품 순 중량 | 1.52 kg |
| eClass 코드 | 23-05-01-06 |
| UNSPSC 코드 | 31171515 |
