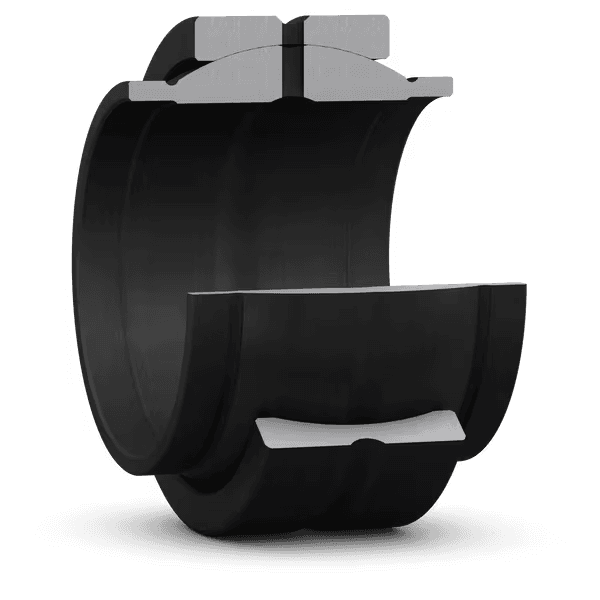

SKF GEG16 ES Spherical Plain Bearing

Radial spherical plain bearing, requiring maintenance, metric sizes

Spherical Plain Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Spherical Plain Bearing

Overview

Radial spherical plain bearing, requiring maintenance, metric sizes

Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/steel sliding contact surface combination and an extended inner ring. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings.

Key features

Designed for radial and combined radial and axial loads
Suitable for heavy static, alternating or impact loads
Extended inner ring can save spacer rings

Typical applications

Hydraulic cylinder rod ends
Construction machinery linkages
Agricultural joints
Industrial pivot structures

Selection guidance

Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.

Symbol	Value	Description
C	17.6 kN	Basic dynamic load rating
C0	88 kN	Basic static load rating

Symbol	Value	Description
d	16 mm	Bore diameter
D	28 mm	Outside diameter
B	16 mm	Inner ring width
C	9 mm	Outer ring width

Symbol	Value	Description
da	max. 20 mm	da
Da	max. 26.3 mm	Da
ra	max. 0.3 mm	ra
rb	max. 0.3 mm	rb

Designed for combined radial and axial loads
Suitable for heavy static, alternating or shock loads
Extended inner ring saves the spacer ring

Code	Description
슬라이딩 접촉면 조합	Steel/steel, standard
내륜 소재	Bearing steel
외륜 소재	Bearing steel
유지보수	Relubrication required
경방향 내부틈새	CN
씰링	None
재윤활 기능	Included
제품 순 중량	0.031 kg
eClass 코드	23-05-01-06
UNSPSC 코드	31171515
