| Symbol | Value | Description |
|---|---|---|
| C | 280 kN | Basic dynamic load rating |
| C0 | 465 kN | Basic static load rating |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

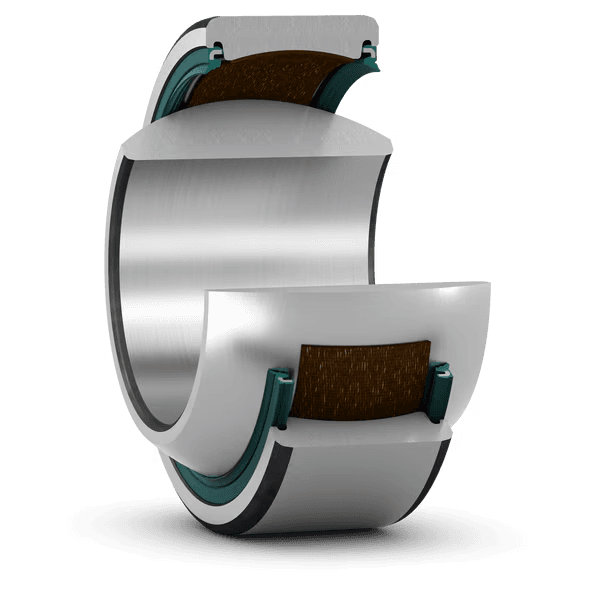

SKF GEH35 TXE-2LS Spherical Plain Bearing
Radial spherical plain bearing, maintenance-free, metric sizes
Spherical Plain Bearing
RFQ
Restocking soon · Inquire
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Spherical Plain Bearing
Overview
Radial spherical plain bearing, maintenance-free, metric sizes
Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/PTFE fabric sliding contact surface combination and the bearings are maintenance-free. Except for those with designation suffix TXGR, they have a double-lip contact seal (-2RS) or a triple-lip, heavy duty contact seal (-2LS) on both sides. Those with designation suffixes TXGR, TXG3E or TXG3A are made of stainless steel.
Key features
- Designed for radial and combined radial and axial loads
- Long service life and maintenance-free
- Suitable for very heavy, constant direction loads
- Low coefficient of friction
Typical applications
- Hydraulic cylinder rod ends
- Construction machinery linkages
- Agricultural joints
- Industrial pivot structures
Selection guidance
Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.
| Symbol | Value | Description |
|---|---|---|
| d | 35 mm | Bore diameter |
| D | 62 mm | Outside diameter |
| B | 35 mm | Inner ring width |
| C | 22 mm | Outer ring width |
| Symbol | Value | Description |
|---|---|---|
| da | max. 39.7 mm | da |
| Da | max. 57.5 mm | Da |
| ra | max. 0.6 mm | ra |
| rb | max. 1 mm | rb |
- Designed for combined radial and axial loads
- Long service life and maintenance-free
- Suitable for very heavy, constant-direction loads
- Low coefficient of friction
| Code | Description |
|---|---|
| 슬라이딩 접촉면 조합 | Steel/PTFE fabric |
| 내륜 소재 | Bearing steel |
| 외륜 소재 | Bearing steel |
| 유지보수 | Maintenance-free |
| 씰링 | Seal on both sides |
| 씰링 유형 | Triple lip |
| 재윤활 기능 | None |
| 제품 순 중량 | 0.39 kg |
| eClass 코드 | 23-05-01-06 |
| UNSPSC 코드 | 31171515 |
