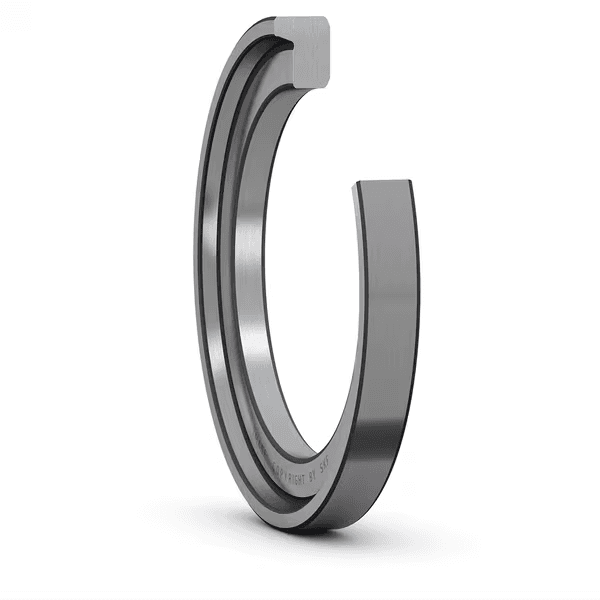

SKF HJ 320 EC/VA301 Cylindrical Roller Bearing

Angle ring (L-shaped thrust collar) for single row cylindrical roller bearings, NU or NJ design

Cylindrical Roller Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Cylindrical Roller Bearing

Overview

Angle ring (L-shaped thrust collar) for single row cylindrical roller bearings, NU or NJ design

Angle rings (L-shaped thrust collars) are used either with NU design cylindrical roller bearings to locate the shaft axially in one direction, or with NJ design bearings to locate the shaft axially in both directions. The rings are made of carbon chromium steel and are hardened and ground. They are supplied as separate components.

Key features

Locate the shaft axially if there are no NJ or NUP design locating bearings within the product range
Provide an extended inner ring seat for heavily loaded bearings in the locating position
Simplify design or mounting procedures

Typical applications

Industrial electric motors
Gearboxes and reducers
Machine tool spindle support positions
Rolling mills, paper machines, and heavy machinery

Selection guidance

Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.

Symbol	Value	Description
d	100 mm	Bore diameter
D	139.5 mm	Outside diameter
B	13 mm	Bore width

Locates the shaft axially when no NJ or NUP design locating bearing is present in the product range
Provides an extended inner ring seat for high-load bearings at the designated position
Simplifies the design or mounting procedure

Code	Description
재료	Bearing steel
코팅	None
제품 순 중량	0.87 kg
eClass 코드	23-05-09-01
UNSPSC 코드	31171505
