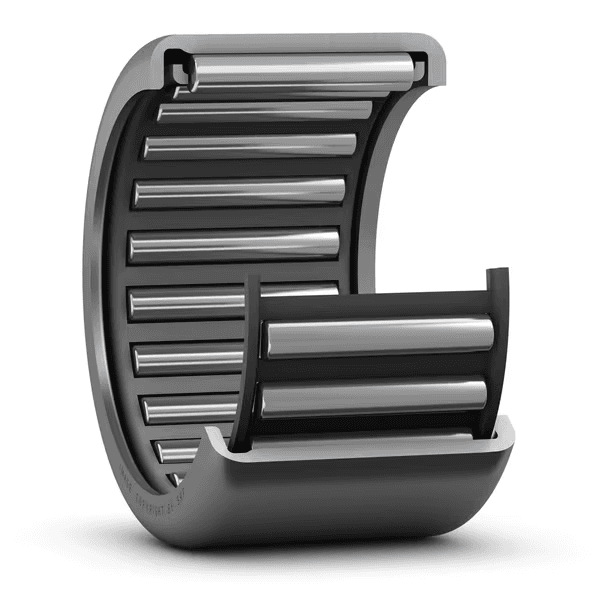

SKF HK 1516 Needle Roller Bearing

Drawn cup needle roller bearing with open ends

Needle Roller Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Needle Roller Bearing

Overview

Drawn cup needle roller bearing with open ends

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.

Key features

High radial load carrying capacity
High stiffness
Very low cross-sectional height

Typical applications

Automotive transmissions
Industrial gearboxes
Compressors and pumps
Links, pivots, and rocker arms

Selection guidance

Check mounting envelope, inner ring requirement, shaft surface hardness, lubrication, load, and speed range.

Symbol	Value	Description
C	10.1 kN	Basic dynamic load rating
C0	14.6 kN	Basic static load rating
reference_speed_rpm	15 000 r/min	Reference speed
limiting_speed_rpm	16 000 r/min	Limiting speed

Symbol	Value	Description
Fw	15 mm	Needle roller complement bore diameter
D	21 mm	Outside diameter
B	16 mm	Width

High radial load capacity
High rigidity
Very low cross-section height

Code	Description
베어링 부품	Inner ring bearing
열 개수	1
외륜 유형	Drawn cup, open end
정렬 기능	None
케이지	Sheet steel
플랜지 개수, 외부 링	2
공차 클래스	Normal
소재, 베어링	Bearing steel
코팅	None
씰링	None
윤활유	None
재윤활 기능	None
제품 순 중량	0.0145 kg
eClass 코드	23-05-09-03
UNSPSC 코드	31171512
