| Symbol | Value | Description |
|---|---|---|
| C | 116 kN | Basic dynamic load rating |
| C0 | 127 kN | Basic static load rating |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

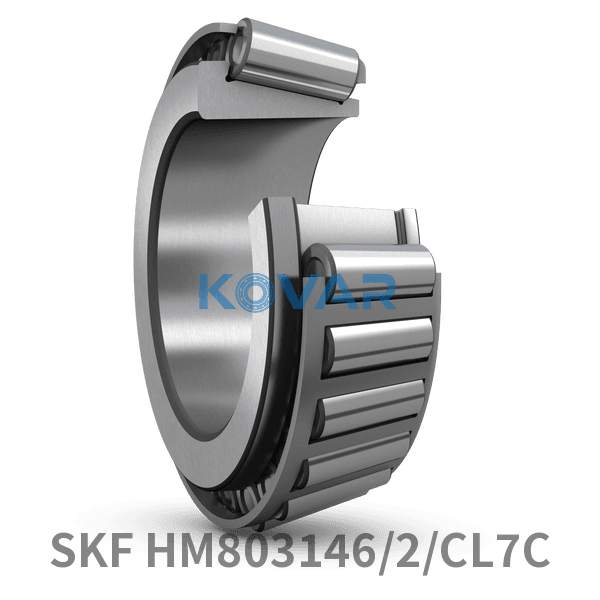

SKF HM803146/2/CL7C Tapered Roller Bearing
Tapered Roller Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Tapered Roller Bearing
Overview
Tapered roller bearing
Tapered roller bearings are designed so the conical rollers and the inner/outer raceways meet at a common apex, efficiently carrying large radial loads together with axial load in one direction. Typically mounted in opposed pairs to handle loads in both directions and provide rigidity, they are standard in automotive wheel hubs, transmissions and construction/mining equipment for heavy-duty service.
Key features
- Large radial plus single-direction axial load
- Opposed pairs give bidirectional load and rigidity
- Separable for easy mounting and adjustment
- Standard in heavy-duty drivetrains
Typical applications
- Automotive and industrial wheel hubs
- Gearboxes and differentials
- Construction and agricultural axles
- Conveyors and rolling equipment
Selection guidance
Consider load ratio, mounting direction, preload/endplay, lubrication, and the paired bearing arrangement.
| Symbol | Value | Description |
|---|---|---|
| d | 41.275 mm | Bore diameter |
| T | 29.37 mm | Total width |
| B | 29.37 mm | Inner ring width |
| Code | Description |
|---|---|
| 베어링 부품 | 내부 링, 케이지 및 롤러 어셈블리(콘 어셈블리) |
| 보어 유형 | Cylindrical |
| 케이지 | Sheet metal |
| 접촉각 배열(복열 베어링) | Not applicable |
| 일치된 배열 | No |
| 코팅 | None |
| 씰링 | None |
| 윤활유 | None |
| 재윤활 기능 | None |
| 유닛 시스템 | Inch |
| 제품 순 중량 | 0.59 kg |
| eClass 코드 | 23-05-09-10 |
| UNSPSC 코드 | 31171516 |
