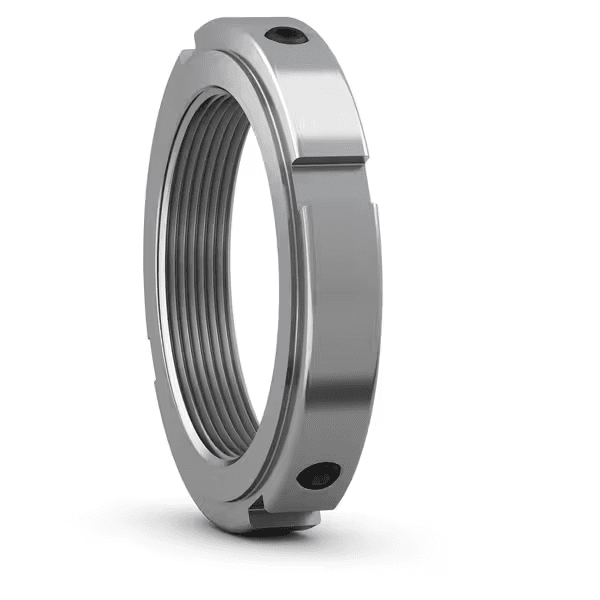

SKF KMF 20 100 × 130 × 19 mm

Lock nut with metric thread, with three locking screws

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Dimensions: 100x130x19mm

Overview

Lock nut with metric thread, with three locking screws

KMF lock nuts with integral locking screws are designed to locate radial bearings axially on a shaft. They reduce the cost of the shaft as no keyway is required. Installation with three integral set screws is quick and easy and no separate locking device is necessary.

Key features

No keyway required
Simple and robust locking for intended applications
Reusable
Cost-effective
Equipped with visual marks for the use of tightening angles

Typical applications

Motors, pumps, and fans
Reducers and industrial gearboxes
Conveyors and handling equipment
General industrial machinery maintenance

Selection guidance

Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.

Symbol	Value	Description
G	M100x2	Thread designation
d	100 mm	Bore diameter
D	130 mm	Outside diameter
B	19 mm	Width

No keyway required
Simple and robust locking for intended applications
Reusable
Cost-effective
Equipped with visual marks for the use of tightening angles

Code	Description
고정 장치	Reflected in the lock nut
유압 장착 너트	No
관련 장착 도구	HN 18-20
제품 순 중량	0.79 kg
eClass 코드	23-11-07-05
UNSPSC 코드	31163218
