  1. Home
  2. /SKF
  3. /SKF KMTA7

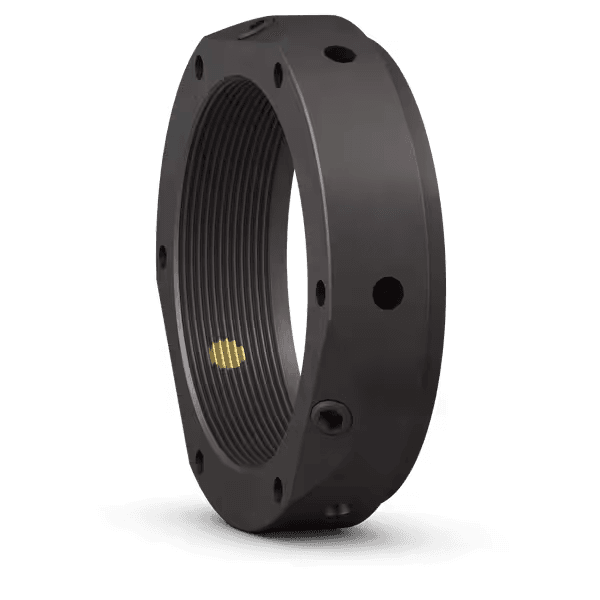

SKF SKF KMTA7
  • SKF SKF KMTA7

SKF

SKF KMTA7 35 × 53 × 20 mm

Precision lock nut with locking pins

RFQ

Out of stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

FXK37CZ4X0
Dimensions
35x53x20mm

Overview

Precision lock nut with locking pins

KMTA precision lock nuts have a cylindrical outside surface and are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm.

Key features

  • ·No keyway required
  • ·Withstands high axial loads
  • ·Reliable, effective locking mechanism
  • ·Designed for frequent and simple installation and removal
  • ·Available for thread M 25x1.5 to M 200x3 (sizes 5 to 40)

Typical applications

  • ·Motors, pumps, and fans
  • ·Reducers and industrial gearboxes
  • ·Conveyors and handling equipment
  • ·General industrial machinery maintenance

Selection guidance

Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.

SymbolValueDescription
GM 35x1.5Thread designation
d35 mmBore diameter
D53 mmOutside diameter
B20 mmWidth
  • No keyway required
  • Can withstand high axial loads
  • Stable and effective locking mechanism
  • Designed for frequent and simple mounting and dismounting
  • Usable with threads M 25x1.5 to M 200x3 (sizes 5–40)
CodeDescription
고정 장치Reflected in the lock nut
유압 장착 너트No
관련 장착 도구B 52-55
제품 순 중량0.17 kg
eClass 코드23-11-07-05
UNSPSC 코드31163218
📄datasheet pdf download

Also searched as

The same part number can be written with or without separators, or in progressive prefix form. We index these common variants so your search reaches this page:

  • SKFKMTA7
  • SKF KMTA7
