| Symbol | Value | Description |
|---|---|---|
| C | 10.2 kN | Basic dynamic load rating |
| C0 | 17 kN | Basic static load rating |
| limiting_speed_rpm | 3 200 r/min | Limiting speed |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

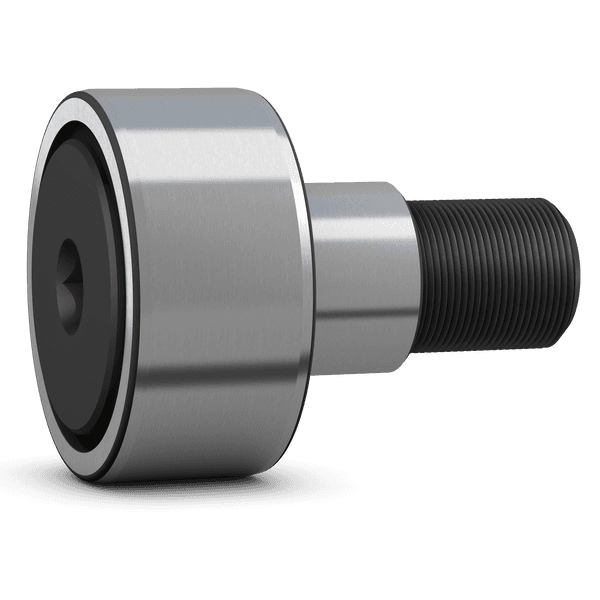

SKF KRE40PPA Track Roller
Cam Followers (stud type)
Track Roller
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Track Roller
Overview
SKF KRE40PPA Track Roller is a rolling bearing whose thick outer ring rolls directly on a cam track, guide rail, or rocker arm contact surface. The needle- or cylindrical-roller assembly inside the heavy outer ring tolerates shock load and vibration, with yoke-type (bore + external pin) and stud-type (integral threaded shaft) variants covering most mounting configurations.
The outer ring is intentionally heavy so it can run directly against a track surface, with a cage of needles or cylindrical rollers inside. Yoke-type rollers mount on a separate pin or bolt-shaft; stud-type rollers carry an integral threaded stud and install as a single part.
Key features
- Outer-ring rotation tolerant of shock and vibration
- Heavy outer ring for direct track / rail contact
- Yoke-type (bore mount) and stud-type (integral shaft) variants
- Sealed or shielded options for contamination and lubrication control
Typical applications
- Cam followers and indexing mechanisms
- Guide tracks in packaging, printing, and textile machinery
- Rotating guide rollers on assembly and conveyor lines
- Automatic door and feed guides in machine tools
Selection guidance
Consider mounting style (yoke vs stud), outer-ring profile (cylindrical or crowned), track surface hardness, load direction and speed, and lubrication / sealing requirements.
| Symbol | Value | Description |
|---|---|---|
| D1 | 40 mm | 기능적 외부 직경 |
| d | 22 mm | 스터드 직경 |
| L | 58.1 mm | 길이 |
| C | 20 mm | Outer ring width |
| Code | Description |
|---|---|
| 구름 요소 | 니들 롤러 |
| 열 개수 | 1 |
| 외륜 프로필 | 크라운 |
| 스터드 정렬 | 편심 칼라가 있는 중심 스터드 |
| 플랜지 개수, 외부 링 | 2 |
| 조임 기능 | 육각형 홈 |
| 케이지 | Included |
| 경방향 내부틈새 | Between C2 and CN |
| 공차 클래스 | Other |
| 소재, 베어링 | Bearing steel |
| 코팅 | None |
| 씰링 | Seal on both sides |
| 씰링 유형 | Contact type |
| 윤활유 | Grease |
| 재윤활 기능 | 각 스터드 끝의 중심 |
| 제품 순 중량 | 0.312 kg |
| eClass 코드 | 23-05-09-03 |
| UNSPSC 코드 | 31171512 |
