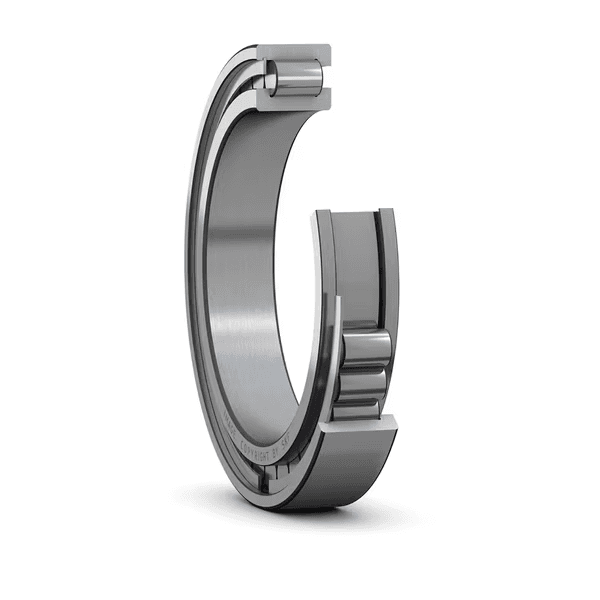

SKF NCF 2930 CV Cylindrical Roller Bearing 150 × 210 × 36 mm

Single row full complement cylindrical roller bearing, NCF design

Cylindrical Roller Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Cylindrical Roller Bearing
Dimensions: 150x210x36mm

Overview

Single row full complement cylindrical roller bearing, NCF design

Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.

Key features

Very high radial load carrying capacity
High radial stiffness
Long service life
Locate the shaft axially in one direction

Typical applications

Industrial electric motors
Gearboxes and reducers
Machine tool spindle support positions
Rolling mills, paper machines, and heavy machinery

Selection guidance

Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.

Symbol	Value	Description
C	292 kN	Basic dynamic load rating
C0	490 kN	Basic static load rating
reference_speed_rpm	1 400 r/min	Reference speed
limiting_speed_rpm	1 700 r/min	Limiting speed

Symbol	Value	Description
d	150 mm	Bore diameter
D	210 mm	Outside diameter
B	36 mm	Width

Symbol	Value	Description
da	min. 159 mm	da
das	166 mm	das
Da	max. 201 mm	Da
Db	max. 203 mm	Db
ra	max. 2 mm	ra
rb	max. 1 mm	rb

Very high radial load capacity
High radial rigidity
Long service life
Axial location of the shaft in one direction

Code	Description
베어링 부품	Complete bearing
축방향 변위 역량	In one direction
열 개수	1
로케이팅 기능, 베어링 외륜	None
보어 유형	Cylindrical
케이지	None
설계	Non-separable
플랜지 개수, 외부 링	1
플랜지 개수, 내부 링	2
루스 플랜지	None
경방향 내부틈새	CN
공차 클래스	Normal
코팅	None
씰링	None
윤활유	None
재윤활 기능	None
제품 순 중량	3.66 kg
eClass 코드	23-05-09-01
UNSPSC 코드	31171505
