SKF

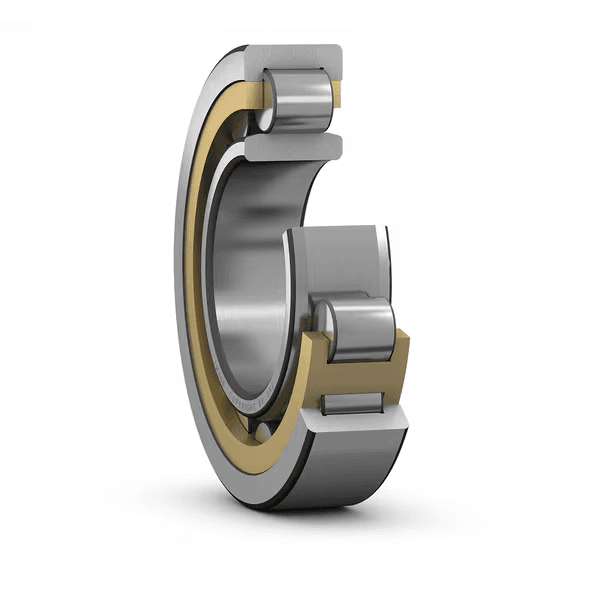

Single row cylindrical roller bearing, NU design
Cylindrical Roller Bearing
RFQ
Estimated delivery: 9 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
Single row cylindrical roller bearing, NU design
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.
| Symbol | Value | Description |
|---|---|---|
| C | 1 060 kN | Basic dynamic load rating |
| C0 | 1 250 kN | Basic static load rating |
| reference_speed_rpm | 2 400 r/min | Reference speed |
| limiting_speed_rpm | 4 500 r/min | Limiting speed |
| performance_class | SKF Explorer | SKF performance class |
| Symbol | Value | Description |
|---|---|---|
| d | 130 mm | Bore diameter |
| D | 280 mm | Outside diameter |
| B | 93 mm | Width |
| Symbol | Value | Description |
|---|---|---|
| da | max. 163 mm | da |
| db | min. 170 mm | db |
| Da | max. 261.4 mm | Da |
| ra | max. 3 mm | ra |
| rb | max. 3 mm | rb |
| Code | Description |
|---|---|
| 베어링 부품 | Complete bearing |
| 축방향 변위 역량 | In both directions |
| 열 개수 | 1 |
| 로케이팅 기능, 베어링 외륜 | None |
| 보어 유형 | Cylindrical |
| 케이지 | Machined brass |
| 플랜지 개수, 외부 링 | 2 |
| 플랜지 개수, 내부 링 | 0 |
| 루스 플랜지 | None |
| 경방향 내부틈새 | CN |
| 공차 클래스 | Normal |
| 코팅 | None |
| 씰링 | None |
| 윤활유 | None |
| 재윤활 기능 | None |
| 제품 순 중량 | 28.4 kg |
| eClass 코드 | 23-05-09-01 |
| UNSPSC 코드 | 31171505 |
