  1. Home
  2. /Bearings
  3. /SKF NU322ECML Cylindrical Roller Bearing
SKF

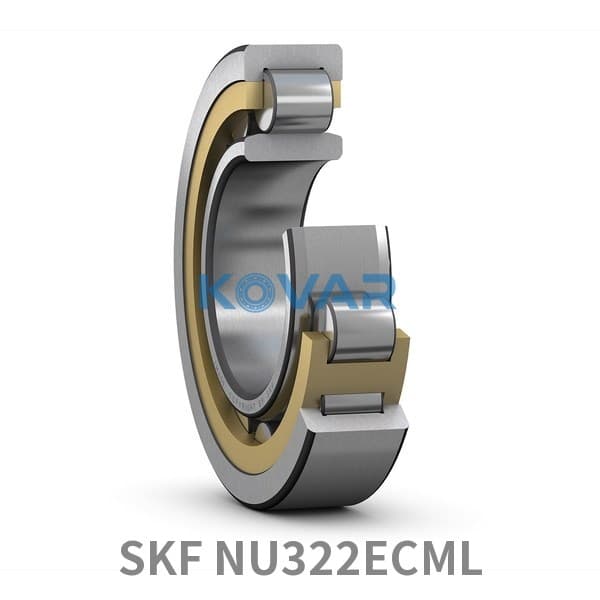

SKF NU322ECML SKF NU322ECML Cylindrical Roller Bearing
  • SKF NU322ECML SKF NU322ECML Cylindrical Roller Bearing

SKF

SKF NU322ECML Cylindrical Roller Bearing 110 × 240 × 50 mm

Cylindrical Roller Bearing

RFQ

In stock

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

TLY902MHP7
Category
Cylindrical Roller Bearing
Bore
110 mm

Overview

The SKF NU322ECML is a cylindrical roller bearing with optimized internal design (more and larger rollers, EC) and machined brass window-type cage · one-piece (ML), 110 × 240 × 50 mm (bore × OD × width).

Kovar lists 24 SKF variants in the 110×240×50 mm size; the closest to the NU322ECML are NU322ECM (optimized internal design, Machined brass cage), NU322ECM/C3 (optimized internal design, Machined brass cage, Internal clearance C3), NU322ECM/C3NU322ECMC3 (optimized internal design, Machined brass cage, Internal clearance C3). Limiting speed is 5,300 rpm for the NU322ECML versus 3,400 rpm for the NU322ECM/C3NU322ECMC3.

The same specification comes one size down as NU320ECML (100 mm bore) and one size up as NU324ECML (120 mm bore). Parts from other brands with the same dimensions as the NU322ECML include FAG NU322 -E-M1, IBC NU322.EA, KOYO NU322, NSK NU322; check that the seal and clearance suffixes match before substituting.

Main Dimensions & Performance

SymbolValueDescription
C530 kNBasic dynamic load rating
C0540 kNBasic static load rating
nϑr3 000 r/minReference speed
nG5 300 r/minLimiting speed
SKF ExplorerSKF performance class
≈m11.7 kgWeight

Dimensions

SymbolValueDescription
d110 mmBore diameter
D240 mmOutside diameter
B50 mmWidth

Mounting Dimensions

SymbolValueDescription
damax. 139 mmda
dbmin. 146 mmdb
Damax. 225.2 mmDa
ramax. 2.5 mmra
rbmax. 2.5 mmrb

Related Parts

CodeDescription
Bearing componentComplete bearing
Axial displacement capabilityIn both directions
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageMachined brass
Number of flanges, outer ring2
Number of flanges, inner ring0
Loose flangeNone
Radial internal clearanceCN
Tolerance classNormal
CoatingNone
SealingNone
LubricantNone
Relubrication featureNone
Net weight11.7 kg
eClass code23-05-09-01
UNSPSC code31171505

Product description

Cylindrical roller bearing

Cylindrical roller bearings provide line contact between rollers and raceways, accommodating very high radial loads together with high-speed operation. Depending on the flange configuration (NU, NJ, N, NUP), they allow axial displacement or locate the shaft in one or both directions, and their separable design eases mounting and maintenance. They are widely used in gearboxes, electric motors and rolling-mill equipment for heavy-duty service.

Key features

  • ·Very high radial load capacity
  • ·High-speed capable with high rigidity
  • ·Separable design for easy mounting
  • ·Axial function selectable by flange type

Typical applications

  • ·Industrial electric motors
  • ·Gearboxes and reducers
  • ·Machine tool spindle support positions
  • ·Rolling mills, paper machines, and heavy machinery

Selection guidance

Choose the N, NU, NJ, or NUP design by load direction, axial locating requirement, cage material, internal clearance, and lubrication condition.

Datasheet

📄datasheet pdf download

RFQ

Interchangeable alternatives to SKF NU322ECML

Same bearing type, same bore × outside diameter × width, same base designation, and the same seals/shields, bore shape (cylindrical/tapered), internal clearance and precision class. Cage and lubricant may differ — check each product page.
