| Symbol | Value | Description |
|---|---|---|
| reference_speed_rpm | 6 300 r/min | Reference speed |
| limiting_speed_rpm | 4 500 r/min | Limiting speed |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

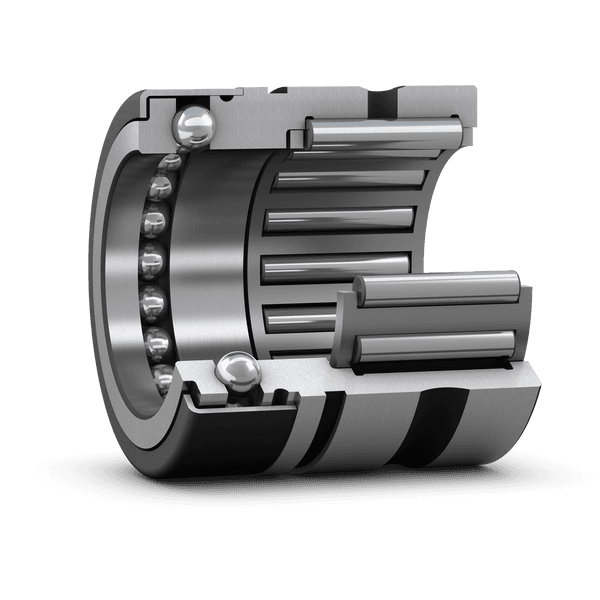

SKF NX20Z Thrust Ball Bearing 20 × 30 × 28 mm
Thrust Ball Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
In stockEstimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Thrust Ball Bearing
- Dimensions
- 20x30x28mm
Overview
Thrust ball bearing
Thrust ball bearings consist of balls and washer-shaped raceway rings and support axial loads only. Single-direction types take axial load in one direction, double-direction types in both; they do not carry radial load. They are used in machine tools, jacks and rotary tables.
Key features
- Dedicated axial load support
- Single- or double-direction types
- High axial rigidity
- Carry no radial load
Typical applications
- Vertical motors and pumps
- Rotary tables
- Screw jacks and lifting devices
- Low- to medium-speed axial support positions
Selection guidance
Verify axial load direction, speed, washer type, mounting face squareness, and whether any radial load is present.
| Symbol | Value | Description |
|---|---|---|
| d | 20 mm | Bore diameter |
| D | 30 mm | Outside diameter |
| B | 28 mm | Width |
| Symbol | Value | Description |
|---|---|---|
| da | min. 25 mm | da |
| Da | max. 28 mm | Da |
| Ca | 12.2 mm | Ca |
| ra | max. 0.3 mm | ra |
| di | 17 mm | di |
| F | 20 mm | F |
| Bi | 16 mm | Bi |
| Code | Description |
|---|---|
| 구름 베어링 유형 | Needle roller / full-complement thrust ball bearing |
| 베어링 부품 | Radial component without inner ring |
| 스러스트 부품 | Without cage |
| 경방향 부품 | With cage |
| 구름 요소(스러스트 부품) | Ball |
| 축방향 하중 역량 | Single row |
| 공차 클래스 | Other |
| 소재, 베어링 | Bearing steel |
| 코팅 | None |
| 특수 기능 | Thrust component with stamped steel cover without lubrication hole |
| 윤활제(스러스트 부품) | Grease |
| 제품 순 중량 | 0.068 kg |
| eClass 코드 | 23-05-09-03 |
| UNSPSC 코드 | 31171512 |
