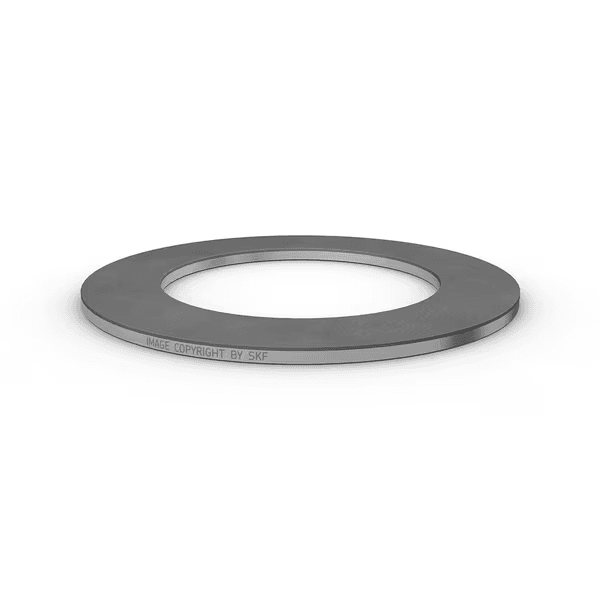

SKF PCMW 203601.5 E 20 × 36 × 1.5 mm

PTFE composite thrust washer

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Dimensions: 20x36x1.5mm

Overview

PTFE composite thrust washer

SKF PTFE composite thrust washers are suitable for rotating and oscillating movements, and can accommodate heavy axial loads. They have as standard a hole to take a pin or screw to prevent the washers from rotating on their seat. The material provides good heat dissipation, therefore enabling relatively high sliding velocities.

Key features

Maintenance-free operation
Cost-effective with long service life
High operating temperatures
High load carrying capacity
High sliding velocity

Typical applications

Motors, pumps, and fans
Reducers and industrial gearboxes
Conveyors and handling equipment
General industrial machinery maintenance

Selection guidance

Select by shaft diameter, load direction, speed, mounting space, sealing/lubrication condition, and compatibility with the existing part number.

Symbol	Value	Description
C	56 kN	Basic dynamic load rating
C0	176 kN	Basic static load rating

Symbol	Value	Description
d	20 mm	Bore diameter
D	36 mm	Outside diameter
H	1.5 mm	Height

Symbol	Value	Description
Da	36 mm	Da
Ja	28 mm	Ja
Ha	1 mm	Ha

Maintenance-free operation
Cost-effective due to long service life
High operating temperature
High load-carrying capability
High sliding speed

Code	Description
재료	PTFE composite
제품 순 중량	0.0077 kg
eClass 코드	23-05-01-90
UNSPSC 코드	31171605
