| Symbol | Value | Description |
|---|---|---|
| C | 16.3 kN | Basic dynamic load rating |
| C0 | 10.9 kN | Basic static load rating |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

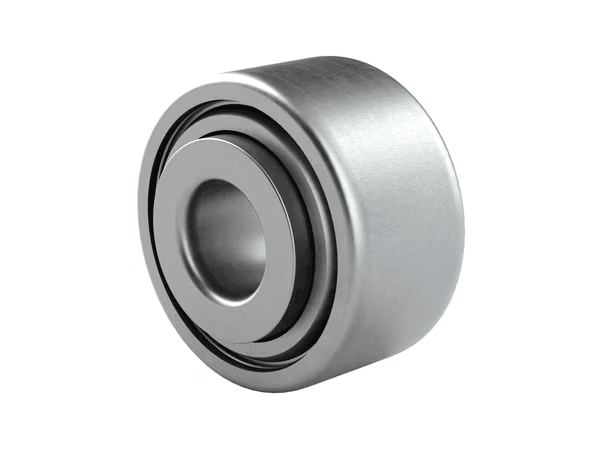

SKF PER.5204RRY2 Angular Contact Ball Bearing 16.027 × 45.225 × 26 mm
Special double row angular contact ball bearing with round bore, cylindrical outer surface and high contamination resistant seals
Angular Contact Ball Bearing
RFQ
Restocking soon · Inquire
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Angular Contact Ball Bearing
- Dimensions
- 16.027x45.225x26mm
Overview
Special double row angular contact ball bearing with round bore, cylindrical outer surface and high contamination resistant seals
These special double row angular contact ball bearings are designed mainly for agricultural applications, are commonly used in agricultural seeding equipment, such as grain drills or planters. The integral sealing and higher-than-standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
Key features
- Designed mainly for agricultural applications
- Round bore
- Accommodate relatively high radial loads and large axial loads in both directions
- Integral sealing and higher-than-standard grease fill prolongs bearing service life
Typical applications
- Machine tool spindles and support shafts
- Pumps and compressors
- High-speed motors
- Precision gearboxes and robot drives
Selection guidance
Select by contact angle, arrangement, preload, precision class, axial load direction, and operating speed.
| Symbol | Value | Description |
|---|---|---|
| d | 16.027 mm | Bore diameter |
| D | 45.225 mm | Outside diameter |
| B | 26 mm | Width |
- Mainly designed for agricultural use
- Cylindrical bore
- Accommodates relatively high radial loads and large axial loads in both directions
- Integrated sealing and higher-than-standard grease fill extend bearing service life
| Code | Description |
|---|---|
| 열 개수 | 2 |
| 씰링 유형 | Contact type |
| 윤활유 | Grease |
| 제품 순 중량 | 0.193 kg |
