| Symbol | Value | Description |
|---|---|---|
| C | 32.6 kN | Basic dynamic load rating |
| C0 | 20 kN | Basic static load rating |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

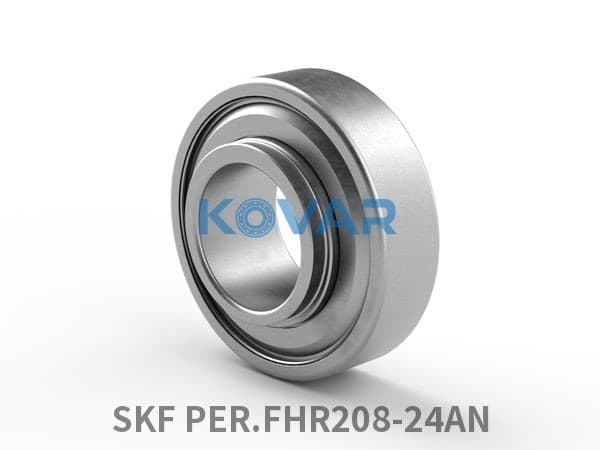

SKF PER.FHR208-24AN Radial Insert Ball Bearing
Radial insert ball bearing (Y-bearing)
Radial Insert Ball Bearing
RFQ
Estimated delivery: 26 Jul 2026 (overseas stock, ~4 weeks)
Restocking soon · Inquire
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Radial Insert Ball Bearing
Overview
Radial insert ball bearing (Y-bearing)
Radial insert ball bearings (Y-bearings) have a spherical outside surface and an extended inner ring, easily locked to the shaft by set screws or an eccentric collar. Combined with a housing they form flanged or pillow block units and accommodate a degree of initial misalignment.
Key features
- Simple locking by set screw/eccentric collar
- Spherical OD accommodates initial misalignment
- Form housing units
- Sealed for reduced maintenance
Typical applications
- Conveyor rollers
- Agricultural and food machinery
- Fans and blowers
- Packaging and handling equipment
Selection guidance
Check locking method, housing compatibility, seal design, lubrication, contamination level, and load condition.
| Symbol | Value | Description |
|---|---|---|
| d | 38.1 mm | Shaft diameter |
| d | 38.1 mm | Bore diameter |
| D | 80 mm | Outside diameter |
| Code | Description |
|---|---|
| 보어 유형 | Cylindrical |
| 씰링 | Seal on both sides |
| 씰링 유형 | Contact type |
| 윤활유 | Grease |
| 제품 순 중량 | 0.46 kg |
