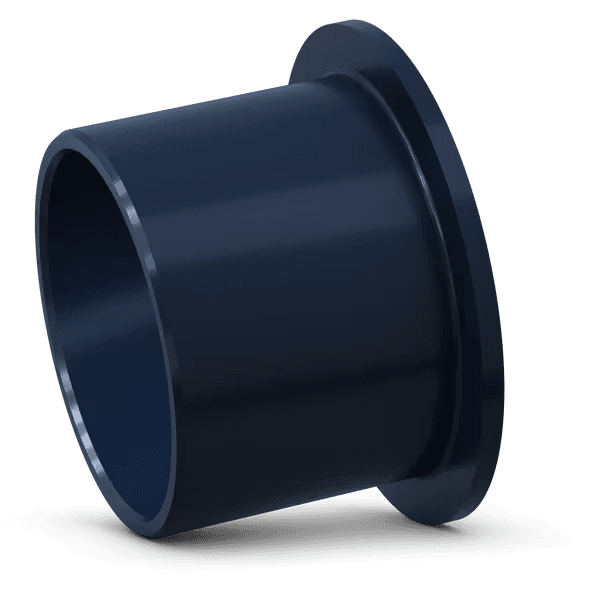

SKF PPMF 141617 Spherical Plain Bearing 14 × 16 × 17 mm

PTFE polyamide flanged bushing

Spherical Plain Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Spherical Plain Bearing
Dimensions: 14x16x17mm

Overview

PTFE polyamide flanged bushing

SKF PTFE polyamide flanged bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads as well as axial loads in one direction. They provide a cost-effective, self-lubricating solution, and are designed for dry sliding operations. Despite their thin-walled design, they are wear-resistant and can accommodate moderate loads. Their compact design provides good heat dissipation, therefore enabling relatively high sliding velocities.

Key features

Maintenance-free operation
Cost-effective
Excellent corrosion resistance
Electrically insulating

Typical applications

Hydraulic cylinder rod ends
Construction machinery linkages
Agricultural joints
Industrial pivot structures

Selection guidance

Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.

Symbol	Value	Description
d	14 mm	Bore diameter
D	16 mm	Outside diameter
B	17 mm	Width
D2	22 mm	Flange diameter
C	1 mm	Flange thickness

Maintenance-free operation
Cost-effective
Good corrosion resistance
Electrical insulation

Code	Description
설계	플랜지
재료	PTFE polyamide
재윤활 기능	None
제품 순 중량	0.00147 kg
eClass 코드	23-05-01-90
UNSPSC 코드	31171605

datasheet pdf download
