SKF PSM 405050 A51 Spherical Plain Bearing 40 × 50 × 50 mm

Sintered bronze straight bushing

Spherical Plain Bearing

RFQ

Restocking soon · Inquire

EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.

Category: Spherical Plain Bearing
Dimensions: 40x50x50mm

Overview

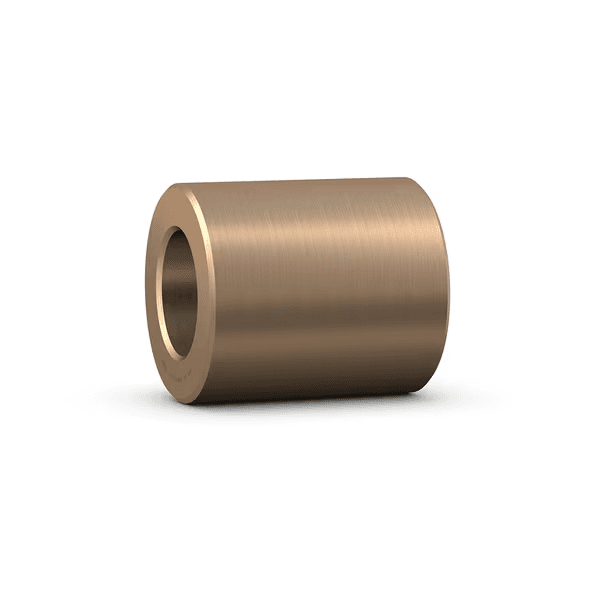

Sintered bronze straight bushing

SKF sintered bronze straight (cylindrical) bushings are suitable for rotating, oscillating and linear movements, and can accommodate radial loads. SKF sintered bronze bushings are self-lubricating and maintenance-free. They consist of a porous bronze matrix that is impregnated with mineral oil. The oil impregnation enables very high sliding velocities and makes these bushings suitable for rotating applications.

Key features

Maintenance-free operation
Low coefficient of friction
Very high sliding velocity

Typical applications

Hydraulic cylinder rod ends
Construction machinery linkages
Agricultural joints
Industrial pivot structures

Selection guidance

Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.

Symbol	Value	Description
d	40 mm	Bore diameter
D	50 mm	Outside diameter
B	50 mm	Width

Maintenance-free operation
Low coefficient of friction
Very high sliding speed

Code	Description
설계	Straight
재료	Sintered bronze
재윤활 기능	None
제품 순 중량	0.225 kg
eClass 코드	23-05-01-90
UNSPSC 코드	31171605

datasheet pdf download
