| Symbol | Value | Description |
|---|---|---|
| C | 280 kN | Basic dynamic load rating |
| C0 | 400 kN | Basic static load rating |
+82 70-7954-6116
info@kovar.kr
Technical support: Mon–Fri 9 AM – 6 PM KST
SKF

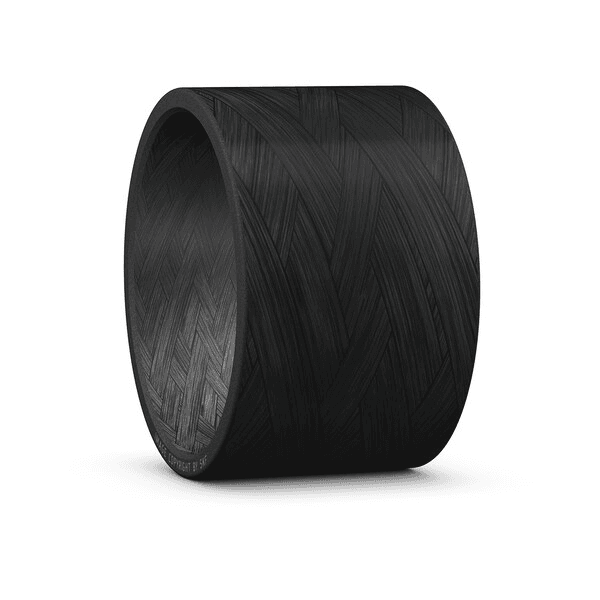

SKF PWM 505840 Spherical Plain Bearing 50 × 58 × 40 mm
Filament wound straight bushing
Spherical Plain Bearing
RFQ
Restocking soon · Inquire
EX-WORKS (Incoterms 2020) Seoul, Korea — Buyer arranges freight, duties, and insurance.
- Category
- Spherical Plain Bearing
- Dimensions
- 50x58x40mm
Overview
Filament wound straight bushing
SKF filament wound straight (cylindrical) bushings are suitable for oscillating, rotating and linear movements, and can accommodate radial loads. The composite material is specially developed to accommodate heavy loads, impact loads and vibrations. The bushings are also less sensitive to misalignment and have excellent dry sliding characteristics.
Key features
- Maintenance-free operation
- Very good frictional properties
- High load carrying capacity
- Excellent corrosion resistance
- Electrically insulating
Typical applications
- Hydraulic cylinder rod ends
- Construction machinery linkages
- Agricultural joints
- Industrial pivot structures
Selection guidance
Check load direction, oscillation angle, relubrication access, sealing need, ring material, and mounting dimensions.
| Symbol | Value | Description |
|---|---|---|
| d | 50 mm | Bore diameter |
| D | 58 mm | Outside diameter |
| B | 40 mm | Width |
- Maintenance-free operation
- Very good friction characteristics
- High load capacity
- Excellent corrosion resistance
- Electrical insulation
| Code | Description |
|---|---|
| 설계 | Straight |
| 재료 | Filament wound |
| 재윤활 기능 | None |
| 제품 순 중량 | 0.0478 kg |
| eClass 코드 | 23-05-01-91 |
| UNSPSC 코드 | 31171605 |
